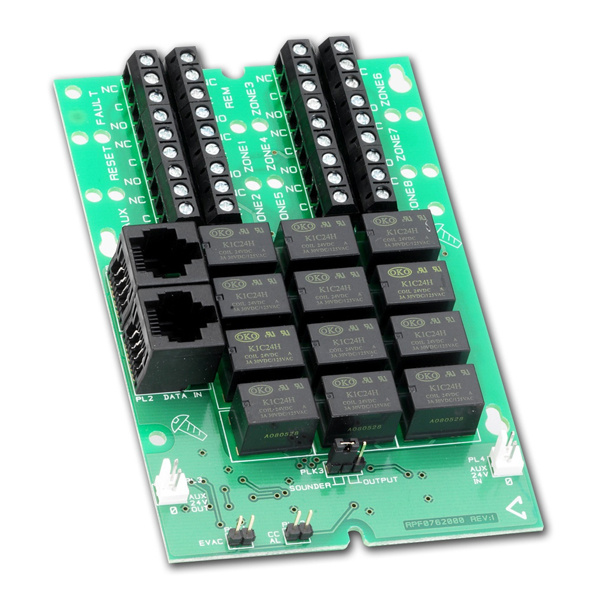

C-TEC CFP Relay Output Card (as per CFP762 + 8 Output Per Zone Relays) (CFP763)
SKU
CFP763
£62.23
£51.86
C-TEC CFP Relay Output Card (as per CFP762 + 8 Output Per Zone Relays) (CFP763)
- Buy 10 for £59.83 £49.86 each and save 4%
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for C-TEC CFP Relay Output Card (as per CFP762 + 8 Output Per Zone Relays) (CFP763)
An optional system expansion device for use with CFP Standard 2-8 Zone Fire Panels or CFP AlarmSense 2-8 Zone Fire Panel which Provides four panel-controlled volt free relay outputs (reset, fault, aux. fire and remote).
Key Features of the CFP763 |
|---|
|
> - PCB mounts inside the CFP fire panel.
- Reset relay is active during the panel’s reset cycle.
- Fault relay is active in any fault condition. This relay is failsafe and normally energised - if power is removed from the panel the relay will changeover to produce a fault signal.
- Aux. fire relay is active in an alarm condition provided all relevant delays have expired.
- Remote relay is active during any Alarm Condition provided all relevant delays have expired.
- Outputs are NOT designed to switch mains voltages.
|
| Brand | C-TEC |
|---|---|
| Manufacturer Part No. | CFP763 |
Write Your Own Review
FAQ’s for C-TEC CFP Relay Output Card (as per CFP762 + 8 Output Per Zone Relays) (CFP763)
No questions yet. Be the first to ask the question!
Product Specification for C-TEC CFP Relay Output Card (as per CFP762 + 8 Output Per Zone Relays) (CFP763)
| Product Dimensions (mm) | 82 W x 125 H x D 23mm |
| Weight: | 64g |
| Properties: | Single pole changeover contacts; Rated at 1A 50V; 50V Isolation between relays, contacts and CFP & relays; 27mA active relay coil current @ 27.6V supply |
