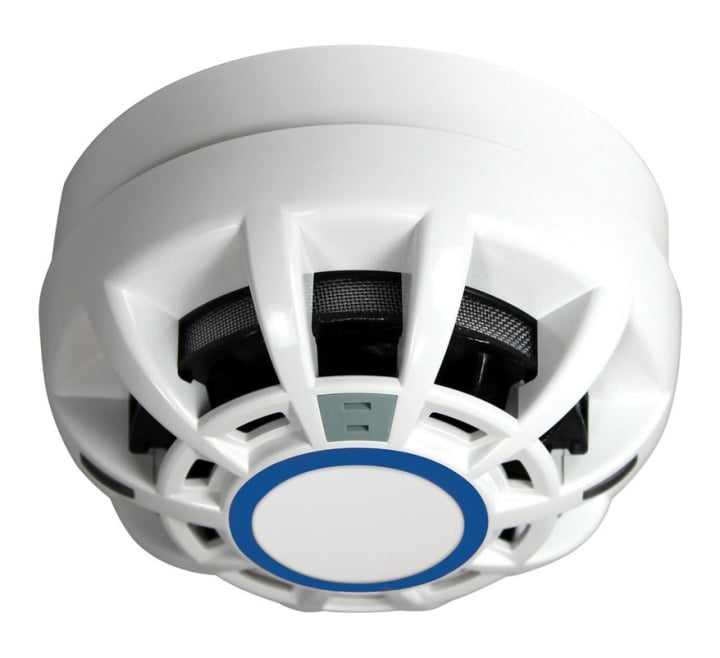

C-TEC CAST-PRO Addressable Smoke & Heat Multisensor with Tone Sounder (CP414T)
SKU
CP414T
£71.64
£59.70
C-TEC CAST-PRO Addressable Smoke & Heat Multisensor with Tone Sounder (CP414T)
- Buy 10 for £68.88 £57.40 each and save 4%
Available on Backorder
This item is not currently in stock, but it is available to backorder. Contact us for lead time.
Product Details for C-TEC CAST-PRO Addressable Smoke & Heat Multisensor with Tone Sounder (CP414T)
The C-TEC CP414T is a programmable multisensor with integral tone sounder, compatible with C-TEC's range of CAST protocol fire detection panels and field devices.
Offering multiple functionality in a single device – smoke & heat multisensor fire detection plus a 92db(A) tone Alarm sounder – detects real fires quickly, reduces false alarms effectively and indicates true alarm conditions decisively.
Key Features of the CP414T |
|---|
|
> Multiple functionality in a single device – smoke & heat multisensor fire detection plus a 92db(A) tone Alarm sounder – detects real fires quickly, reduces false alarms effectively and indicates true alarm conditions decisively
> Certified to EN54-3, 5, 7, 17 & 29 > Compatible with C-TEC’s ZFP and XFP CAST protocol addressable fire panels > MASC™ (Miniature Advanced Smoke Detection Chamber) and AFFIRM™ algorithms provide incredible tolerance to false alarms whilst enhancing the detection of real fire conditions > Drift compensation functionality > Onboard short circuit loop isolator > Includes two 8mm x 2mm ultra-bright red LED indicating strips > Multiple detection modes and different sensitivities for different times of the day > 5.4mA max. alarm current (max volume) > 590uA typical quiescent current @ 40V DC > Compatible with C-TEC’s CA408 CAST base c/w integrated locking mechanism & ID tag |
| Brand | C-TEC |
|---|---|
| Manufacturer Part No. | CP414T |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | C-TEC CAST |
| Sensor Type | Combined Optical and Thermistor |
| Detectable Medium | Smoke, Heat |
| Colour | White |
| Warranty | 1 Year |
Write Your Own Review
FAQ’s for C-TEC CAST-PRO Addressable Smoke & Heat Multisensor with Tone Sounder (CP414T)
No questions yet. Be the first to ask the question!
Product Specification for C-TEC CAST-PRO Addressable Smoke & Heat Multisensor with Tone Sounder (CP414T)
| Approvals/certifications | CPR number 0063-CPR-242190019, KIWA certified to EN54-3, 5, 7, 17 & 29 |
| Compatibility | Compatible with C-TEC's XFP/ZFP CAST Protocol Addressable Fire Panels. |
| Type | Heat & Smoke Fire Detection plus Tone Alarm. |
| Sensitivity | 8 Detection Modes (default for this device is Mode 7). |
| Supply wiring | 2-wire, polarity sensitive. |
| Supply/operating voltage | 28 to 40V DC. |
| Quiescent current | 590uA @ 40V. |
| Alarm current (Imax at Vmin) | 5.4mA (max volume). |
| Alarm current (Iavg at Vmin) | 5.0mA (max volume). |
| Sound pressure level (LAFmax) at Vmax at 1m | 92dB(A). |
| VAD category & coverage | N/A. |
| Indicators | 2 LED indicator strips emitting red light when in alarm offering 360º visibility. Optional remote LED. |
| Connections | Via CA408 base: 1 +Ve IN (analogue switch); 2 +Ve OUT (analogue switch); 3 Remote LED +Ve; 4 0V; 5 0V; 6 Screen; 7 Screen. |
| Product dimensions (mm) | 105mm diameter x 48mm deep (detector only); 105mm diameter x 65mm deep (detector in base). |
| IP Rating | IP21C |
| Weight | 122g (not in base); 176g (in base). |
| Operating conditions/temperature | -10ºC to +50ºC. Max relative humidity: 95% (non-condensing) |
| Notes | Requires a CA408 CAST base. CA408R relay base also available. |
