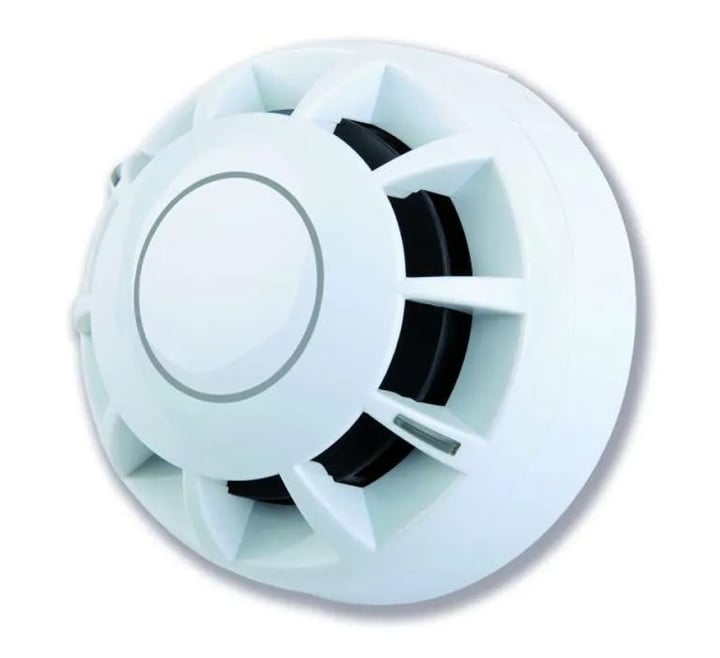

C-TEC CAST Addressable Optical Smoke Detector (CA416)
- Buy 10 for £28.39 £23.66 each and save 4%
Product Details for C-TEC CAST Addressable Optical Smoke Detector (CA416)
The C-TEC CA416 is an addressable optical smoke detector compatible with C-TEC's CAST protocol fire detection panels and field devices.
Key Features of the CA416 |
|---|
|
> A high-quality smoke detector for use with C-TEC’s XFP & ZFP ‘CAST’ protocol Addressable Fire Panels
> LPCB certified to EN54-7 & 17 and Kiwa Telefication certified to EN54-13 > Smart algorithms help reduce false alarms > Onboard short circuit loop isolator > Includes two 8mm x 2mm ultra-bright red LED indicating strips > Drift compensation functionality > 0.16dB/m sensitivity/obscuration level > 5mA typical alarm current (370uA typical quiescent) @ 22-40V DC > Programmable multi-function status LED > Compatible with C-TEC’s CA408 CAST base c/w integrated locking mechanism & ID tag |
| Brand | C-TEC |
|---|---|
| Manufacturer Part No. | CA416 |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | C-TEC CAST |
| Sensor Type | Optical |
| Detectable Medium | Smoke |
| Colour | White |
| Warranty | 1 Year |
FAQ’s for C-TEC CAST Addressable Optical Smoke Detector (CA416)
Product Specification for C-TEC CAST Addressable Optical Smoke Detector (CA416)
| Approvals/certifications |
LPCB certified to EN54-7 & 17 and Kiwa Telefication certified to EN54-13. |
| Compatibility |
Compatible with C-TEC's XFP/ZFP CAST Protocol Addressable Fire Panels. |
| Type |
Optical (utilises an infrared light source and photodiode). |
| Application/operation |
When there is no smoke, light passes in front of the photodiode in a straight line. When smoke enters the chamber across the path of the IR beam, light is scattered, some of which falls on the phot |
| Sensitivity |
0.16dB/m. |
| Supply wiring |
2-wire, polarity sensitive. |
| Supply/operating voltage |
22 to 40V DC. |
| Quiescent current |
370µA typical @ 22 to 40V DC. |
| Alarm current |
5mA typical (LEDs illuminated) @ 22 to 40V DC. |
| Indicators |
2 LED indicator strips emitting red light when in alarm offering 360º visibility. Optional remote LED. |
| Connections |
Via CA408 base: 1 +Ve IN (analogue switch); 2 +Ve OUT (analogue switch); 3 Remote LED +Ve; 4 0V; 5 0V; 6 Screen; 7 Screen. |
| Product dimensions (mm) |
102.2mm diameter x 37mm deep (detector only); 102.2mm diameter x 57.5mm deep (detector in base). |
| Construction & finish |
White polycarbonate casing rated to UL94 V-2 with nylon parts. |
| IP Rating |
IP42. |
| Weight |
99g (not in base); 154g (in base). |
| Operating conditions/temperature |
-20ºC to +85ºC. |
| Notes |
Requires a CA408 CAST base. CA408R relay base also available. |
