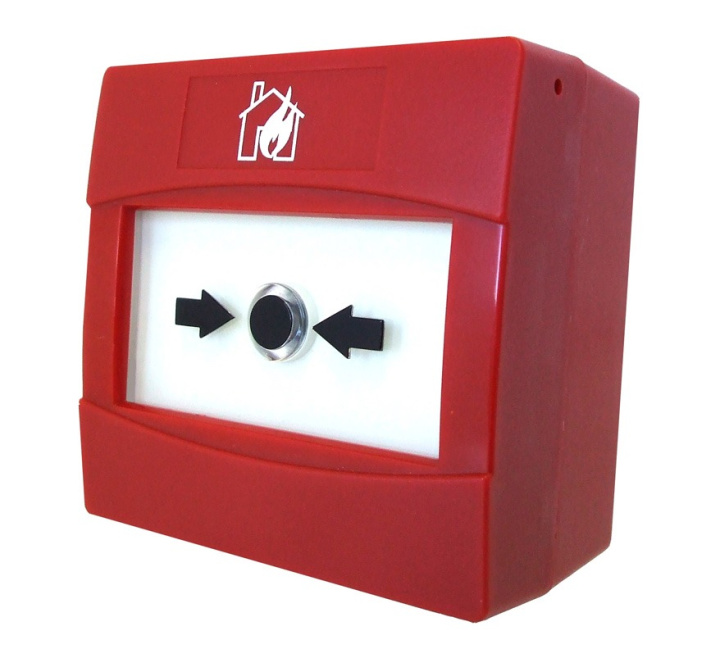

C-TEC CAST Addressable Manual Call Point (Universal Mounting) (Red) (CA470)
SKU
CA470
£30.67
£25.56
C-TEC CAST Addressable Manual Call Point (Universal Mounting) (Red) (CA470)
- Buy 10 for £29.50 £24.58 each and save 4%
Available on Backorder
This item is not currently in stock, but it is available to backorder. Contact us for lead time.
Product Details for C-TEC CAST Addressable Manual Call Point (Universal Mounting) (Red) (CA470)
The C-TEC CA470 is an addressable CAST manual call point, compatible with C-TEC's range of CAST protocol fire panels and field devices.
Key Features of the CA470 |
|---|
|
> A high-quality red manual call point for use with C-TEC’s XFP & ZFP ‘CAST’ protocol Addressable Fire Panels
> LPCB certified to EN54 Parts 11 & 17 and Kiwa Telefication certified to EN54-13 > Surface or flush mountable > Onboard short-circuit loop isolator > Smooth-action resettable element mimics the feel of breaking glass > Supplied with reset/back box removal key and ‘Not in Use’ label > Red LED ‘alarm ring’ illuminates call point face upon activation > Photoluminescent operating window remains visible for up to 5 minutes > 5mA typical alarm current (370µA typical quiescent @ 22-40V DC > IP42 rated (IP67 rated version also available, order code CA47067) > Yellow, green, blue and white versions also available |
| Brand | C-TEC |
|---|---|
| Manufacturer Part No. | CA470 |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | C-TEC CAST |
| Warranty | 1 Year |
Write Your Own Review
FAQ’s for C-TEC CAST Addressable Manual Call Point (Universal Mounting) (Red) (CA470)
No questions yet. Be the first to ask the question!
Product Specification for C-TEC CAST Addressable Manual Call Point (Universal Mounting) (Red) (CA470)
| Approvals/certifications | LPCB certified to EN54 Parts 11 & 17 and KiwaTelefication certified to EN54-13. |
| Compatibility | Compatible with C-TEC's XFP/ZFP CAST Protocol Addressable Fire Panels. |
| Application/operation | Surface or flush mountable (supplied with a surface back box and flush mount adaptor plate for use in either application). |
| Supply/operating voltage | 22 to 40V DC. |
| Quiescent current | 370µA typical @ 22 to 40V DC. |
| Alarm current | 5mA typical @ 22 to 40V DC. |
| Indicators | Red 'alarm ring'. Lit steady red (when activated) and flashing Red (when polling) |
| Connections | Loop IN, Loop OUT (x2). |
| Product dimensions (mm) | 87 W x 88 H x D 62mm (includes back box). |
| Construction & finish | Red ABS polycarbonate; Glass fibre window. |
| IP Rating | IP42. |
| Weight | 180g. |
| Operating conditions/temperature | -10ºC to +55ºC. |
