C-TEC C-3-8 Base VAD (XP95/Discovery Compatible) (BF460A/CX/W)
- Buy 10 for £30.31 £25.26 each and save 4%
Product Details for C-TEC C-3-8 Base VAD (XP95/Discovery Compatible) (BF460A/CX/W)
The C-TEC BF460A/CX/W is an addressable C-3-8 base VAD which is compatible with Apollo's range of XP95 and Discovery detection devices and designed for use with C-TEC's range of XFP and ZFP fire panels.
The Base Mount range of addressable, loop-powered bases includes sounders, visual alarm devices (VADs) and combined sounder VADs. They are designed for use with C-TEC’s ZFP/XFP panels and other Apollo Discovery compatible fire panels.
Their purpose is to visually and audibly alert building occupants of a fire alarm.
All bases can be optionally used as either:
- a stand-alone base using a separately available locking white cap (BF330CTLIDW) / red cap (BF330CTLIDR), or
- a combined, base and Apollo detector (Apollo detectors are separately available).
The bases offer low current consumption, high sound output, high efficiency VADs, seven selectable volume levels, 15 selectable tone pairs and built-in short-circuit loop isolators. The combined sounder and VAD on the BF432A/CX/W and BF456A/CX/W bases can be set to operate independently of each other (panel dependent function).
All bases (excluding BF432A/CX/W and BF459A/CX/W) are fully certified with all relevant sections of the fire alarm device standards EN 54-3 (Sounders), EN 54-23 (Visual alarm devices - VADs) and EN 54-17 (Short-circuit isolators).
Key Features of the BF460A/CX/W |
|---|
|
> Third-party certified to EN54-23 (VADs) and 17 (Isolators) by the LPCB.

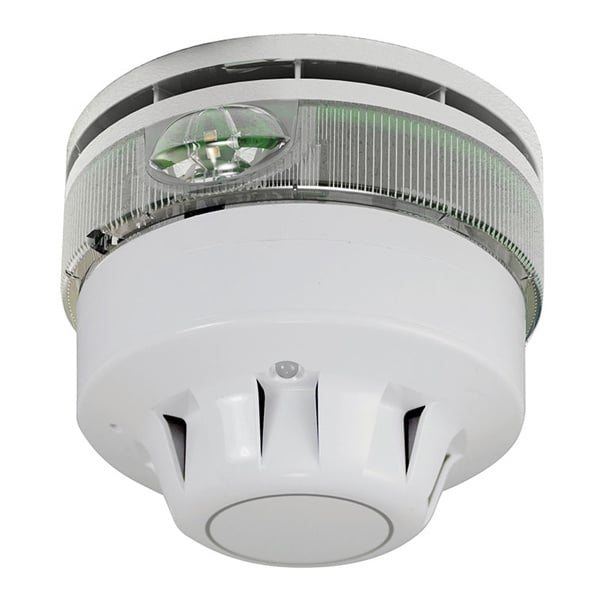

> Provides 'C-3-8' light distribution (min 0.4 lux over a 3 x 8m cylindrical area). > Supplied with a BF431QCP quick connect plate and detector spur wires. > Onboard short-circuit loop isolator. > 550µA quiescent current. > 10mA alarm current @24V DC. > Group addressing facility allows multiple devices to be operated simultaneously. > Optional BF330CTLIDW white or BF330CTLIDR red cap available for stand-alone use. > IP21C rated. > The detector head shown in the image is for illustrative purposes only and is not supplied with this product. |
| Brand | C-TEC |
|---|---|
| Manufacturer Part No. | BF460A/CX/W |
| Colour | White |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Apollo XP95, Apollo Discovery |
| Warranty | 1 Year |
FAQ’s for C-TEC C-3-8 Base VAD (XP95/Discovery Compatible) (BF460A/CX/W)
Product Specification for C-TEC C-3-8 Base VAD (XP95/Discovery Compatible) (BF460A/CX/W)
| Approvals/certifications | Certified to EN54-23 & 17 by the LPCB. |
| Protocol/compatibility | Compatible with C-TEC's XFP/ZFP XP95/Discovery Addressable Fire Panels. |
| Application/operation | Designed to be ceiling mounted - either stand-alone with a red or white cap or as part of a stacked VAD/Detector Base combination. |
| VAD category & coverage | C-3-8 (151m3 cylindrical coverage). |
| Flash rate & colour | 0.5Hz / White. |
| Supply/operating voltage | 21 to 28V DC. |
| Quiescent current | 550µA @ 24 VDC. |
| Nominal SPL (Sound Pressure Level) | n/a. |
| Alarm current | 10mA |
| Indicators | Polling (green LED) & Short Circuit Isolator Active (amber LED). |
| Product dimensions (mm) | 122mm diameter x 46mm deep (not including optional XP95/Discovery detector and base). |
| IP Rating | IP21C (Type A). |
| Weight | 170g. |
| Operating conditions/temperature | -10ºC to +55ºC. Max. 95% RH (Non-condensing). |
