C-TEC Conventional Button Reset Point, Stainless Steel (NC809DB/SS)
SKU
NC809DB/SS
£50.18
£41.82

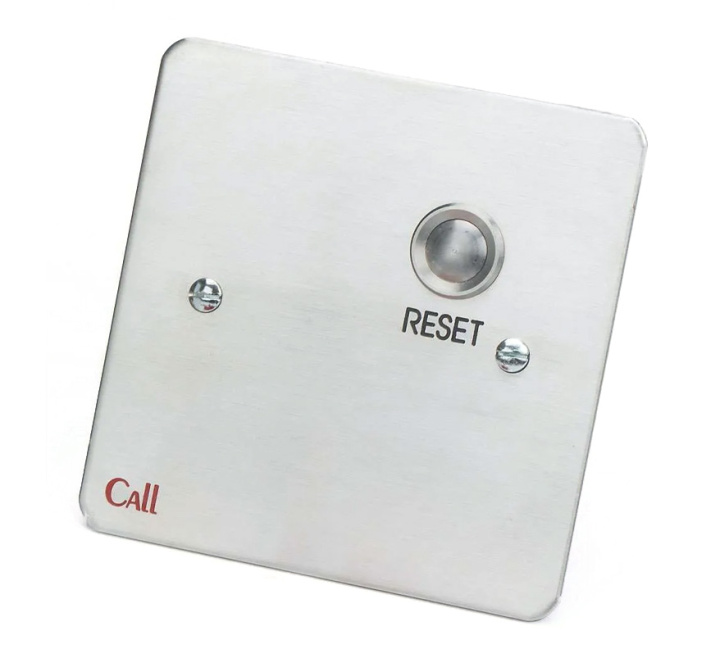

C-TEC NC809DB/SS Button Reset Point, Stainless Steel
- Buy 10 for £48.25 £40.21 each and save 4%
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for C-TEC Conventional Button Reset Point, Stainless Steel (NC809DB/SS)
The C-TEC NC809DB/SS is a button-operated reset point designed for use with C-TEC's 800 Series Call System. Manufactured from brushed stainless steel, this reset point is both sturdy and stylish, making it a suitable option for any establishment.
This reset point can be used to remotely cancel standard calls generated from ceiling pulls and/or wall call points that are wired on the same zone. It saves time and effort by eliminating the need to locate and manually reset the original call point.
Measuring 87 W x 87 H x 24 D mm, this reset point is compact and can be easily mounted on a 30mm UK single gang back box, making installation a breeze.
Key Features of the NC809DB/SS |
|---|
|
> Stainless Steel Button reset point
> For use with 800 Series call system > Remotely cancels std calls generated by ceiling pulls/wall call points wired on same zone > Mounts on UK 30mm single gang back box |
| Brand | C-TEC |
|---|---|
| Manufacturer Part No. | NC809DB/SS |
Write Your Own Review
FAQ’s for C-TEC Conventional Button Reset Point, Stainless Steel (NC809DB/SS)
No questions yet. Be the first to ask the question!
Product Specification for C-TEC Conventional Button Reset Point, Stainless Steel (NC809DB/SS)
| Dimensions: Mounts on UK 30mm single gang back box |
W:87mm x H:87mm x D:24mm |
| Quiescent current: | 0mA (none) |
| Alarm current: | Determined by type of control equipment and number/type of field devices connected to system |
| Controls: | Reset button (cancels standard calls from any device wired on same zone) |
| Connections: | SIG (Signal); -ve (Negative) |
| Construction & finish: | Brushed stainless steel |
| Operating temperature: | -5oC to +40oC, 95% humidity non-condensing |
