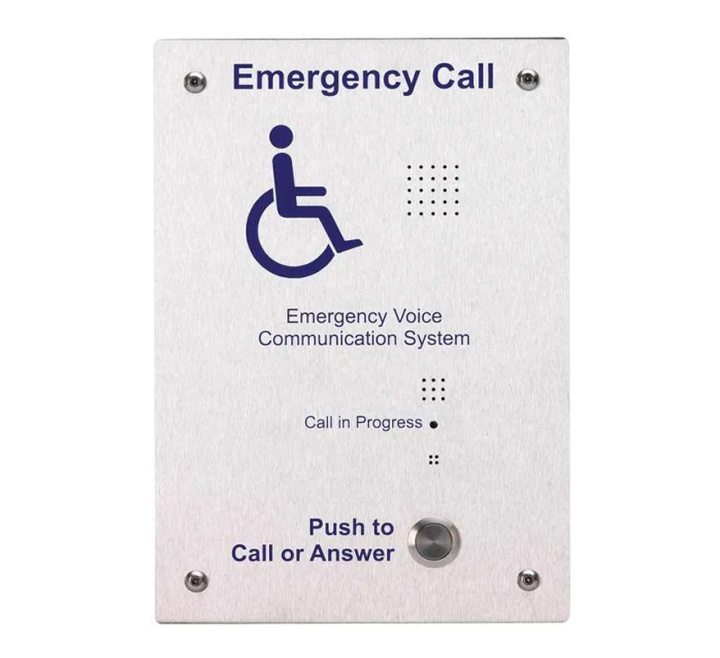

C-TEC Type B Brushed Stainless Steel Disabled Refuge Outstation - Flush Mount (EVC302F)
Limited Stock
Product Details for C-TEC Type B Brushed Stainless Steel Disabled Refuge Outstation - Flush Mount (EVC302F)
The C-TEC EVC302F is a Type B disabled refuge outstation that boasts an appealing design and high-quality brushed stainless steel finish. It is compatible with C-TEC's SigTEL emergency voice communication system, enabling individuals in a disabled refuge area to communicate effortlessly with a SigTEL Master Controller by pressing a button, and vice versa.
The duplex speech system offers crystal-clear audio, and the device comes equipped with several features, including a 'Push to Call or Answer' button, a 'Call in Progress' LED, buzzer, microphone, and loudspeaker. Additionally, it includes connections for an optional induction loop system and a general-purpose open collector output that closes upon activation.
When installed correctly, the EVC302F surpasses the requirements of BS 5839-9.
Key Features of the EVC302F |
|---|
|
> An attractive Type B disabled refuge outstation
> Stylishly finished in high-quality, brushed stainless steel > Suitable for use with C-TEC’s SigTEL disabled refuge / emergency voice communication system > Allows anyone located in a disabled refuge area to communicate with a SigTEL Master Controller at the touch of a button (and vice versa) > Offers true duplex speech > Features a ‘Push to Call or Answer’ button, a ‘Call in Progress’ LED, buzzer, microphone and loudspeaker > Includes connections for an optional induction loop system and a general-purpose open collector output that closes on activation of the unit > Meets and exceeds the requirements of BS 5839-9 when correctly installed |
| Brand | C-TEC |
|---|---|
| Manufacturer Part No. | EVC302F |
FAQ’s for C-TEC Type B Brushed Stainless Steel Disabled Refuge Outstation - Flush Mount (EVC302F)
Product Specification for C-TEC Type B Brushed Stainless Steel Disabled Refuge Outstation - Flush Mount (EVC302F)
| Dimensions: |
W:175mm x H:250mm x D:53mm Hole required for flush mounting. W: 156mm x H:232mm x D:51mm approx (no bezel required) |
| Approvals: | Facilitates compliance with BS5839-9 when correctly installed |
| Supply/operating voltage: | 11V DC derived from a compatible SigTEL Master Controller (drops to 6V DC when in use) |
| Quiescent current: | 3mA |
| Activation current: |
25mA (current draw when intercom in use) |
| Open collector outputs: | O/P +ve & O/P -ve (closes when outstation is active, typically used to trigger a 3rd party CCTV camera, opto-isolated, normally open, max. 24V DC, 3mA |
| Indicators: | Red call in progress LED |
| Controls: | External 'Push to Call or Answer' button (Off Hook); Internal Loudspeaker volume control; Engineer's 'On Hook' and 'Off Hook' pins |
| Expansion connections: | AFILS _ve & AFILS -ve (typically connected to the line-level input of an optical induction loop amplifier): Off-hook and -ve (can be optionally connected to an NC951 accessible toilet alarm kit) |
| Construction & finish: | Brushed stainless steel |
| IP Rating: | IP20 |
| Operating conditions/temp: | -5oC to +40oC, max. humidity 95% |
| Weight: | 1.5kg |
| Notes: Microphone frequency response 250 Hz to 5 kHz +/- 3 dB; Loudspeaker frequency response 250 Hz to 4kHz +/- 3 dB; Audio output level: 0 dB (775 mV) balanced line | |
