C-TEC ActiV Non-Diode Relay Detector Base (C4408R)
SKU
C4408R
£15.41
£12.84
C-TEC ActiV Non-Diode Relay Detector Base (C4408R)
- Buy 10 for £14.82 £12.35 each and save 4%
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for C-TEC ActiV Non-Diode Relay Detector Base (C4408R)

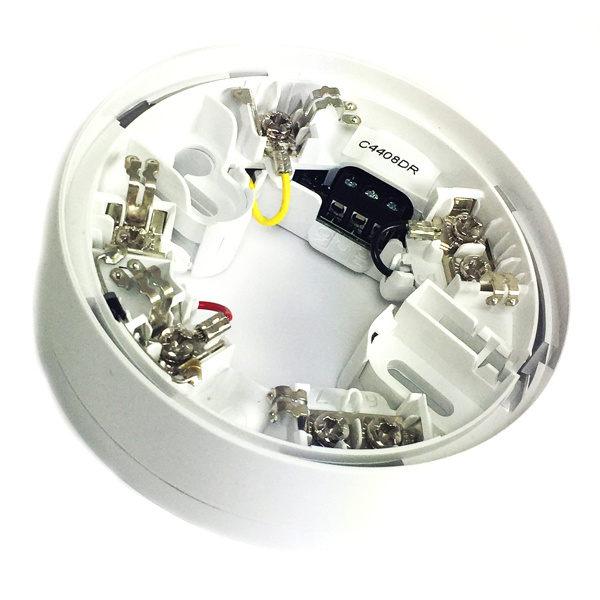

The C4408R Non-Diode Relay Base is designed for use with C-TEC's full range of ActiV detectors and includes a 1A @ 24 VDC relay controlled by detector’s remote LED output.
Key Features of the C4408R |
|---|
|
> Compatible with C-TEC’s entire range of ActiV fire detectors.
> Includes a 1A @ 24 VDC relay controlled by detector’s remote LED output. > Ideal for switching CCTV, security and door retaining systems. > Third-party certified to the relevant parts of EN54 in conjunction with our ActiV detectors. > Easy to fit with lots of working space. > Can be ceiling mounted in any orientation due to the true 360° degree viewing angle of the LED indicator strips on all ActiV detectors. > Integrated detector/base locking mechanism, head removal tool and ID tag. > Simple ‘click and twist’ design. > Remote LED terminals for the optional connection to a BF318 Remote indicator. |
| Brand | C-TEC |
|---|---|
| Manufacturer Part No. | C4408R |
Write Your Own Review
FAQ’s for C-TEC ActiV Non-Diode Relay Detector Base (C4408R)
No questions yet. Be the first to ask the question!
Product Specification for C-TEC ActiV Non-Diode Relay Detector Base (C4408R)
| Approvals/Certifications: | Certified to the relevant parts of EN54 by Intertek as part of C-TECs ActiV fire detector certifications |
| Supply wiring: | 2-wire monitored, polarity sensitive |
| Connections: | (1) +V In; (2) +V Out; (3) Remote LED +V; (4) 0V; (5) 0V; (6) Screen; (7) Screen. NO/C/NC relay connections. Contact rating @ 24VDC is 1A. Terminals can accept up to 2.5mm fire rated cable. |
| Product Dimensions (mm): | 102.2mm diameter x 30mm deep |
| Construction & Finish: | White polycarbonate rated to UL94 V-2 with bright tin plated steel terminals fitted with nickel plated steel screws/washers. |
| IP Rating: | IP42 |
| Weight: | 86g |
