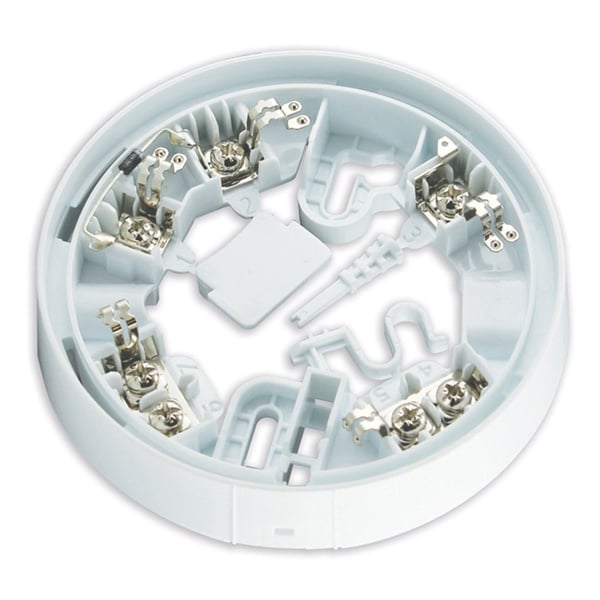

C-TEC ActiV Non-Diode Detector Base (C4408)
SKU
C4408
£2.95
£2.46
C-TEC ActiV Non-Diode Detector Base (C4408)
- Buy 10 for £2.83 £2.36 each and save 4%
In Stock
Product Details for C-TEC ActiV Non-Diode Detector Base (C4408)
The C4408 Non-Diode Base is designed for use with C-TEC's full range of ActiV detectors. Can be ceiling mounted in any orientation due to the true 360° degree viewing angle of the LED indicator strips on all ActiV detectors.
Key Features of the C4408 |
|---|
|
> Compatible with C-TEC’s entire range of ActiV fire detectors.
> Ideal for use in some non-UK territories where head-out monitoring is not required. > Third-party certified to the relevant parts of EN54 in conjunction with our ActiV detectors. > Easy to fit with lots of working space. > Can be ceiling mounted in any orientation due to the true 360° degree viewing angle of the LED indicator strips on all ActiV detectors. > Integrated detector/base locking mechanism, head removal tool and ID tag. > Simple ‘click and twist’ design. > Remote LED terminals for the optional connection to a BF318 Remote indicator. > C4408 diode and C4408R relay bases also available. |
| Brand | C-TEC |
|---|---|
| Manufacturer Part No. | C4408 |
Write Your Own Review
FAQ’s for C-TEC ActiV Non-Diode Detector Base (C4408)
No questions yet. Be the first to ask the question!
Product Specification for C-TEC ActiV Non-Diode Detector Base (C4408)
| Approvals/Certifications: | Certified to the relevant parts of EN54 by Intertek as part of C-TECs ActiV fire detector certifications |
| Supply wiring: | 2-wire monitored, polarity sensitive |
| Connections: | (1) +V In; (2) +V Out; (3) Remote LED +V; (4) 0V; (5) 0V; (6) Screen; (7) Screen. NO/C/NC relay connections. Contact rating @ 24VDC is 1A. Terminals can accept up to 2.5mm fire rated cable. |
| Product Dimensions (mm): | 102.2mm diameter x 30mm deep |
| Construction & Finish: | White polycarbonate rated to UL94 V-2 with bright tin plated steel terminals fitted with nickel plated steel screws/washers. |
| IP Rating: | IP42 |
| Weight: | 55g |
| Notes: | This device does not include a schottky diode and must not be used on systems requiring head out monitoring. |
