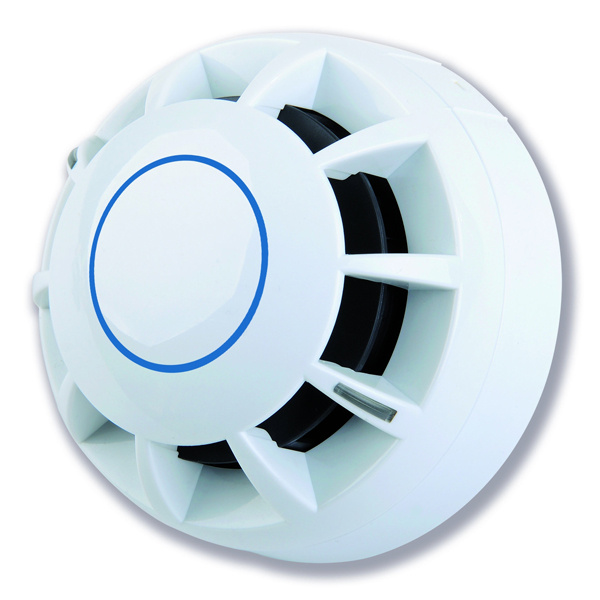

C-TEC ActiV Multi-Sensor Fire Detector (C4414)
SKU
C4414
£17.87
£14.89
C-TEC ActiV Multi-Sensor Fire Detector (C4414)
- Buy 10 for £17.17 £14.31 each and save 4%
In Stock
Product Details for C-TEC ActiV Multi-Sensor Fire Detector (C4414)
A high-quality multi-sensor fire detector offering outstanding detection performance at a very competitive price. Manufactured by C-TEC in the UK.
As well as operating independently, the C4414’s smoke & heat sensors combine to produce a sensitive response to freely burning fires, e.g. when a rise in heat is detected, its smoke response level reduces for improved detection and reduced false alarms.
Key Features of the C4414 |
|---|
|
> Third-party certified to EN54-5 and 7 by Intertek (also tested to pr-EN54-29)
> Wide 6-33V DC operating voltage. > Two 8mm x 2mm ultra-bright red LED indicating strips offering 360º visibility. > Drift compensation functionality ensures detector sensitivity is automatically calibrated to suit prevailing conditions and/or increased contamination levels allowing a greater than 8 year life-span. > Incorporates a heat and smoke sensor making it ideal for detecting a wide range of fires whilst also reducing false alarms. > Mounting bases are sold separately (Click here to see compatible bases) |
| Brand | C-TEC |
|---|---|
| Manufacturer Part No. | C4414 |
Write Your Own Review
FAQ’s for C-TEC ActiV Multi-Sensor Fire Detector (C4414)
No questions yet. Be the first to ask the question!
Product Specification for C-TEC ActiV Multi-Sensor Fire Detector (C4414)
| Approvals/Certifications | Certified to EN54-5 & 7 by Intertek (0359-CPR-00183) |
| Application/Operation: | As well as operating independently, the C4414's smoke and heat sensors combine to produce a sensitive response to freely burning fires, e.g. when a rise in heat is detected, its smoke response level reduces for improved detection and reduced false alarms. |
| Application temperature: | 25°C typical, 50°C max |
| Static response temperature: | 54°C min, 65°C max. |
| Sensitivity: | Nominal alarm threshold of 0.16db/m obscuration measured in accordance with En54-7:2000. |
| Supply wiring: | 2-wire monitored, polarity sensitive |
| Supply/operating voltage: | 6 to 33V DC |
| Quiescent current: | 30µA @ 24 VDC |
| Alarm Voltage: | 6-33V DC |
| Alarm Current: | 19mA @12-33V DC; 11mA @ 9V DC; 2.5mA @ 6V DC |
| Alarm Reset Voltage: | Less than 1V DC (+0.5 seconds alarm reset time) |
| Expansion connections: | Remote LED output available via ActiV base. Current source to the negative line, short-circuit protected. Max voltage 2.7V DC. |
| Product Dimensions: | 102.2mm diameter x 37mm deep (detector in base); 102.2mm diameter x 57.5mm deep |
| Construction & Finish: | White Polycarbonate casing rated to UL94 V-2 with nylon parts |
| IP Rating: | IP42 |
| Weight: | 99g |
