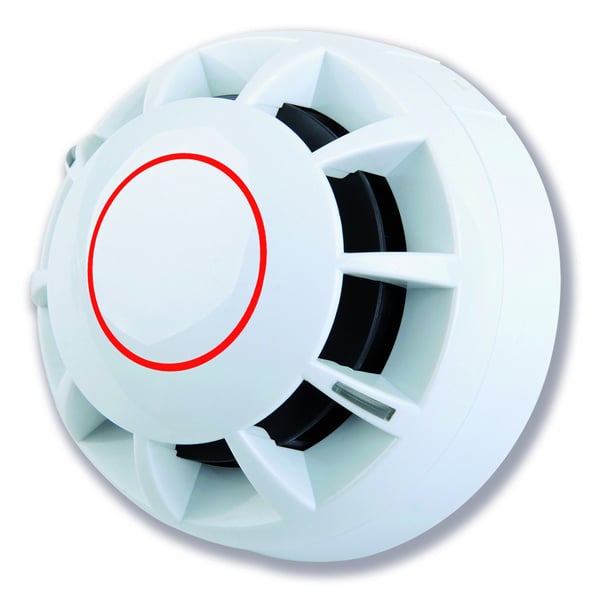

C-TEC ActiV B High 75°C Fixed Temp Heat Detector (C4403B)
SKU
C4403B
£12.91
£10.76
C-TEC ActiV B High 75°C Fixed Temperature Heat Detector (C4403B)
- Buy 10 for £12.42 £10.35 each and save 4%
In Stock
Product Details for C-TEC ActiV B High 75°C Fixed Temp Heat Detector (C4403B)
A high-quality Type B high fixed temperature (75ºC) heat detector offering outstanding detection performance at a very competitive price. Manufactured by C-TEC in the UK. Generates an alarm condition when it detects a temperature of between 69ºC & 85ºC.
Key Features of the C4403B |
|---|
|
> Third-party certified to EN54-5 by Intertek.
> Wide 6-33V DC operating voltage. > Two 8mm x 2mm ultra-bright red LED indicating strips offering 360º visibility. > Mounting bases are sold separately (Click here to see compatible bases) |
| Brand | C-TEC |
|---|---|
| Manufacturer Part No. | C4403B |
Write Your Own Review
FAQ’s for C-TEC ActiV B High 75°C Fixed Temp Heat Detector (C4403B)
No questions yet. Be the first to ask the question!
Product Specification for C-TEC ActiV B High 75°C Fixed Temp Heat Detector (C4403B)
| Approvals/Certifications | Certified to EN54-5 by Intertek (0359-CPR-00183) |
| Application/Operation: | Generates an alarm condition when it detects a temperature of between 69°C & 85°C. |
| Application temperature: | 40°C typical, 65°C max |
| Static response temperature: | 69°C typical, 85°C max. |
| Supply wiring: | 2-wire monitored, polarity sensitive |
| Supply/operating voltage: | 9 to 33V DC |
| Quiescent current: | 30µA @ 24 VDC |
| Alarm Voltage: | 6-33V DC |
| Alarm Current: | 19mA @12-33V DC; 11mA @ 9V DC; 2.5mA @ 6V DC |
| Alarm Reset Voltage: | Less than 1V DC (+0.5 seconds alarm reset time) |
| Expansion connections: | Remote LED output available via ActiV base. Current source to the negative line, short-circuit protected. Max voltage 2.7V DC. |
| Product Dimensions: | 102.2mm diameter x 37mm deep (detector in base); 102.2mm diameter x 57.5mm deep |
| Construction & Finish: | White Polycarbonate casing rated to UL94 V-2 with nylon parts |
| IP Rating: | IP42 |
| Weight: | 99g |
