C-TEC 5 Series Power Supply Configurator (BF423)
SKU
BF423
£104.66
£87.22
C-TEC 5 Series Power Supply Configurator (BF423)
- Buy 10 for £100.63 £83.86 each and save 4%
Limited Stock
Product Details for C-TEC 5 Series Power Supply Configurator (BF423)

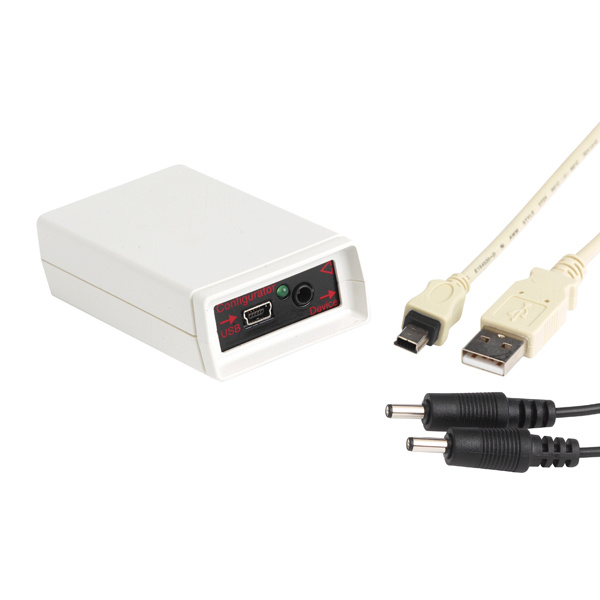

The C-TEC 5 Series PSU Configurator (Part No. BF423), shown right, is used to interface with C-TEC’s 5 Series PSU range. The Configurator software tool can be used to set up the requirements of specific sites and provide status and maintenance information.
It is recommended to periodically check for updates to the Configurator software tool. A free download is available on the C-TEC website via the following link: http://www.c-tec.com/info/software-downloads.html
Key Features of the BF423 |
|---|
|
> Allows C-TEC's BF560 and BF562 range of boxed, caged and PCB-only EN54-4/A2 Power Supplies to be optionally customised to suit an application.
> Configurable PSU parameters include Float voltage temperature compensation; Battery charge rate (mA); Battery impedance; Input/Output settings. > Intuitive and easy-to-use with comprehensive Help files. > Requires a PC running Windows XP, Vista, 7 or 8. > Includes a Configurator, software CD, mini-USB to standard-USB connection lead and a 1.3mm to 1.3mm connection lead c/w adaptor. > IMPORTANT: Changing a PSU's parameters will render its EN54-4/A2 approval obsolete and any changes must be tested by the responsible person for correct operation. > Free software updates available via our Software Page |
| Brand | C-TEC |
|---|---|
| Manufacturer Part No. | BF423 |
Write Your Own Review
FAQ’s for C-TEC 5 Series Power Supply Configurator (BF423)
No questions yet. Be the first to ask the question!
Product Specification for C-TEC 5 Series Power Supply Configurator (BF423)
| Compatibility | Compatible with C-TEC's BF560 and BF562 range of boxed, caged and PCB-only EN54-4/A2 power supplies. |
| PC connection | Connection to PC via mini USB to standard USB connection lead (connects the Configurator to a PC) |
| Notes | *PSU Parameters configurable via the BF423 are: Float voltage temp. compensation; Batt. charge rate (mA); Batt. impedance; Configurable Input/Output settings. |
