C-TEC 24V BS 5446-3 Vibrating Pillow Pad (BF320)
SKU
BF320
£42.06 £35.05
C-TEC 24V BS 5446-3 Vibrating Pillow Pad (BF320)

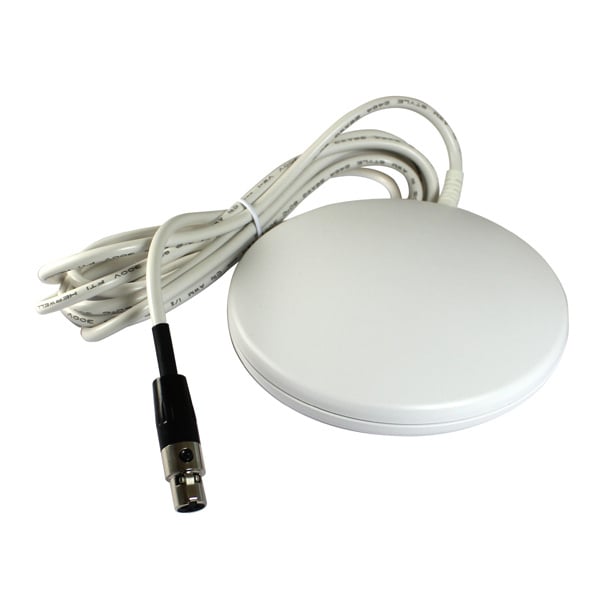

The C-TEC BS 5446-3 Vibrating Pillow Pad, part no. BF320, is designed to be placed flat under the pillow / mattress of a hearing-impaired person to provide warning of a fire alarm condition.
The BF320 plugs directly into a separately available BF320JP connector plate and is also compatible with commonly available third-party connector plates.
It is a 10-30Vd.c. device that vibrates when triggered and also pulses on and off as per BS 5446-3. An internal 6k8Ω EOL (selectable via the BF320JP) provides line monitoring.
| Key Features |
|---|
| > Can be used in conjunction with a BF320JP connection plate to warn the hearing impaired of a potential fire alarm or evacuation alert condition. > Vibrates and pulses on and off when triggered as per the requirements of BS 5446-3 (2015). > Designed to be placed under a pillow to supplement the audible and/or visual indication alerts provided by a system's sounders and/or VADs. > Wide 10-30V DC voltage range means it can also be connected to many third-party connector plates (subject to testing). > Includes a 2m connection lead with a locking mini-XLR connector to prevent accidental removal. > Includes a 6K8 end-of-line monitoring resistor for fire alarm system use - see instructions for monitoring options on other systems. |
| Manufacturer | C-TEC |
|---|---|
| MPN | BF320 |
| EAN | 5056059615608 |
Write Your Own Review
Sort By:
No questions yet. Be the first to ask the question!
| Approvals/certifications | Complies with the requirements of BS 5446-3. |
| Application/operation | Designed to connect to a BF320JP connection plate. The pad is typically placed under a pillow to warn the hard of hearing of an emergency situation. |
| Supply/operating voltage | 10V-30V via BF320JP plate. |
| Activation current | 65mA @ 24V DC / 110mA @ 10V DC. |
| Product dimensions (mm) | 100mm diameter x D 34mm; Connection lead measures 2m. |
| Construction & finish | PC White RAL90003 |
| Weight | 162g |
| Operating conditions/temperature | -10ºC to +60ºC. |
| Notes | The responsible person must ensure the pad's location is satisfactory to wake the user when in alarm. Note that on a C-TEC Evac-Alert System, power should be derived from a mains powered CA737 Four Way flat Interface Unit. |
