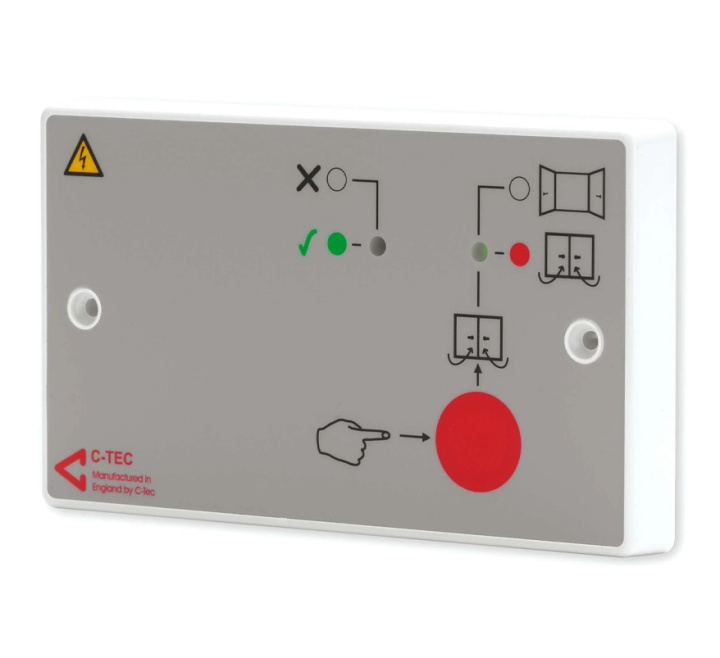

C-TEC 24V 250mA Unregulated Door Release Power Supply Unit (BF375P)
SKU
BF375P
£60.67 £50.56
C-TEC 24V 250mA Unregulated Door Release Power Supply Unit (BF375P)
The C-TEC BF375P is a compact mains-derived power supply unit that is specifically designed to provide power to 24V DC electromagnetic door retainers. With a maximum output of 250mA, this power supply unit is an ideal solution for powering up to 5 electromagnetic door retainers rate at 50mA each.
Featuring Trigger Release, Hold Off, and Local Trigger Inputs, connecting the BF375P to fire alarm control panels, building management systems, timers, relays, and other ancillary equipment has never been easier. The manual release button, Mains On, and Output Triggered indicators add to the convenience and ease of use.
The C-TEC BF375P is versatile and can be mounted on a standard 25mm UK double gang flush or surface back box. Its compact design ensures that it does not take up too much space, making it perfect for tight installations.
| Key Features |
|---|
| > A compact mains-derived power supply unit designed to provide power to 24V DC electromagnetic door retainers. > Maximum output 250mA. > Trigger Release, Hold Off and Local Trigger Inputs facilitate straightforward connection to fire alarm control panels, building management systems, timers, relays and other ancillary equipment. > Includes a manual release button, a Mains On and an Output Triggered indicator. > Can be mounted on a standard 25mm UK double gang flush or surface back box. |
| Manufacturer | C-TEC |
|---|---|
| MPN | BF375P |
| EAN | 5056059601106 |
Write Your Own Review
Sort By:
No questions yet. Be the first to ask the question!
| Application/operation | A double gang Mains derived power supply providing 250mA @ 24V DC for powering up to 5 electromagnetic door retainers rated @ 50mA each. |
|---|---|
| Mains supply | 230V 50/60Hz. |
| Output | 250mA @ 21-28V DC. |
| Indicators | Mains On; Output Triggered. |
| Controls | Trigger Release: requires +5-27V DC @ 5mA ; Hold Off (failsafe): requires a constant +5-27V DC @ 5mA; Local Trigger: Triggers when taken to 0V; Manual release via red button on PSU fascia. |
| Connections | Hold off; Trigger Release; Local Trigger; +V & 0V output. |
| Product dimensions (mm) | 147 W x 87 H x 39 D mm. |
| Construction & finish | White PVC plate; Light grey label. |
| IP Rating | IP40. |
| Weight | 480g. |
| Operating conditions/temperature | -5ºC to +40ºC. Max relative humidity: 95%. |
