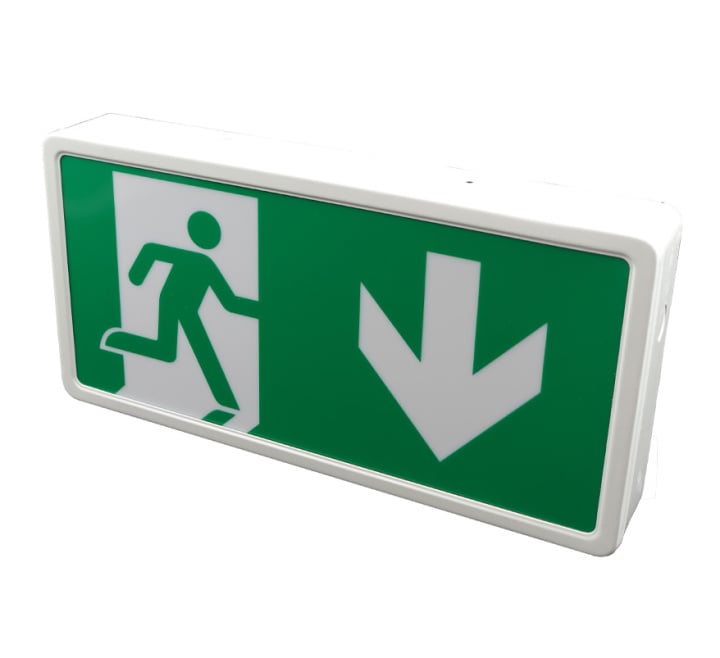

BLE THORNCLIFFE Emergency Exit Box with Self Test - Down Arrow Legend (EL-131350)

SKU
EL-131350
£28.25 £23.54
The BLE THORNCLIFFE LED Emergency Exit Box with Self Test is a traditional design and can be used in both maintained and non-maintained operations.
  • Buy 10 for £27.80 £23.17 each and save 2%
<span style="color: ForestGreen;">In Stock</span> In Stock

Product Details for BLE THORNCLIFFE Emergency Exit Box with Self Test - Down Arrow Legend (EL-131350)

The BLE THORNCLIFFE LED Emergency Exit Box with Self Test features a traditional design, seamlessly combining functionality with a modern aesthetic.

Equipped with a down arrow legend in ISO format as standard (other direction legends are available separately), the BLE THORNCLIFFE LED Emergency Exit Box provides clear and intuitive guidance during evacuations. This ensures a safe and efficient exit for occupants in emergency situations.

Designed to offer flexibility, this exit box can be used in both maintained and non-maintained operations, adapting to your specific requirements.

The self-test feature comes as a standard inclusion, providing convenience and peace of mind. With automated testing capabilities, the exit box ensures its functionality and readiness without the need for manual intervention.

Backed by a 5-year warranty, the BLE THORNCLIFFE LED Emergency Exit Box guarantees its quality and durability, assuring long-term performance. The inclusion of a LiFePO4 battery ensures reliable power supply, allowing the exit box to function effectively during a power failure.

With an IP20 rating, this exit box provides reliable protection against solid objects, making it suitable for various indoor environments.


Key Features of the EL-131350

> Supplied with down arrow legend – ISO Format (other directional legends are available separately)
> Can be used in both maintained and non-maintained operations
> Comes with self test as standard
> 5 year warranty
> Comes with LiFePO4 Battery
> Traditional design
> IP20 protection rating

More information about BLE THORNCLIFFE Emergency Exit Box with Self Test - Down Arrow Legend (EL-131350)

More Information
Brand BLE Lighting & Power
Manufacturer Part No. EL-131350
Write Your Own Review
You're reviewing:BLE THORNCLIFFE Emergency Exit Box with Self Test - Down Arrow Legend (EL-131350)
Your Rating

Datasheets and Manuals for BLE THORNCLIFFE Emergency Exit Box with Self Test - Down Arrow Legend (EL-131350)

FAQ’s for BLE THORNCLIFFE Emergency Exit Box with Self Test - Down Arrow Legend (EL-131350)

Loading...



Ask Question

All questions will be displayed after moderation.

No questions yet. Be the first to ask the question!

Product Specification for BLE THORNCLIFFE Emergency Exit Box with Self Test - Down Arrow Legend (EL-131350)

GENERAL DATA

Light Source: LED
Light Source Replaceable: No
Colour/Finish: Black
Material: Iron & Polycarbonate
IP Rating: IP20
IK Rating: IK10
Mounting Type: Surface
Warranty: 5 Years
Life Time Hours: 50,000



DIMENSIONS & WEIGHT

Length: 390mm
Depth: 60mm
Width: 190mm
Weight: 1190g



ELECTRICAL

Input Voltage: 220-240V
Input Frequency: 50Hz
Wattage: 3.8W
Classification: Class I
Operating Temperature: 0 to 40ºC
Power Factor: 0.26



OPTICAL

Colour Temperature: 6500K
CRI: 70CRI
Beam Angle: 107º
Lumen Output: 35lm
Viewing Distance: 33M



EMERGENCY

Battery Type: LiFePO4 18650 3.2V
Battery Capacity: 1.5Ah
Battery Warranty: 5 Years
Recharge Time: 24 Hours
Battery Replaceable: Yes
Mode of Operation: Maintained/Non-Maintained
Test Procedure: Self test
Emergency Duration: 3 Hours
Emergency Lumen Output: 20lm
