BLE FOXHILL IP65 High Output LED Emergency Bulkhead (EL-114850)
Discontinued
Alternative Products
Product Details for BLE FOXHILL IP65 High Output LED Emergency Bulkhead (EL-114850)

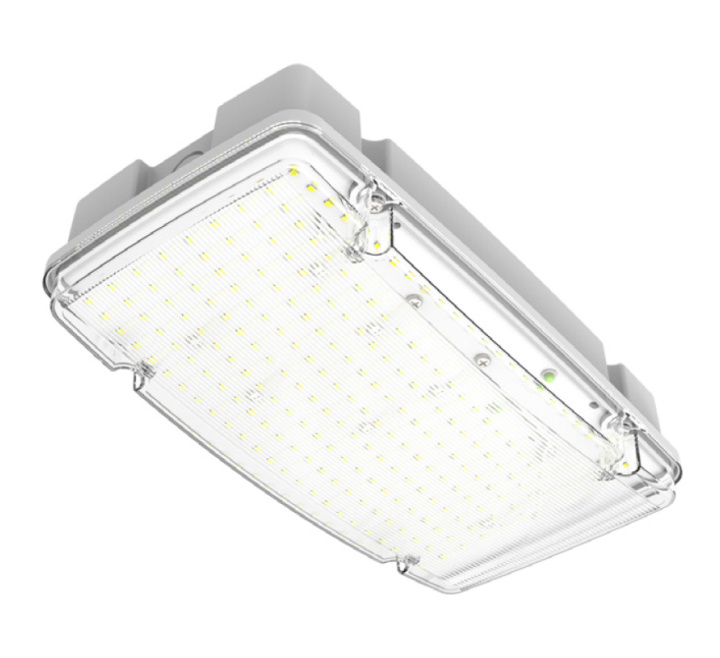

The BLE FOXHILL High Output Bulkhead is a versatile emergency light fitting designed for high-level mounting applications. This bulkhead is specifically engineered to meet the demanding requirements of high-risk task areas, warehousing, and manufacturing environments.
One of its standout features is the selectable lumen output, allowing you to choose between two levels: 1000 lumens or 1500 lumens. This flexibility ensures that you can adjust the lighting intensity based on your specific needs.
Constructed from durable polycarbonate material, the BLE FOXHILL bulkhead is built to withstand the rigours of industrial settings. Its robust design includes a built-in easy-fit gear tray, simplifying the installation process and ensuring a secure fit.
With its modern aesthetic, this bulkhead not only provides exceptional functionality but also adds a touch of contemporary style to any space. The inclusion of a LiFePO4 battery guarantees a reliable power supply during emergencies or power outages.
To further instil confidence in its performance, the BLE FOXHILL High Output Bulkhead comes with an impressive 5-year warranty on both the fitting and the battery.
Key Features of the EL-114850 |
|---|
|
> Suitable for high level mounting applications
> Ideal for use in high risk task areas, warehousing and manufacturing > Can be maintained/non-maintained > 1000lm/1500lm selectable output > Polycarbonate construction > Built in easy-fit gear tray > Modern design > LiFePO4 battery > 5 year warranty on fitting and battery |
| Brand | BLE Lighting & Power |
|---|---|
| Manufacturer Part No. | EL-114850 |
FAQ’s for BLE FOXHILL IP65 High Output LED Emergency Bulkhead (EL-114850)
Product Specification for BLE FOXHILL IP65 High Output LED Emergency Bulkhead (EL-114850)
GENERAL DATA
| Light Source: | LED |
| Light Source Replaceable: | No |
| Colour/Finish: | White |
| Material: | Polycarbonate |
| IP Rating: | IP65 |
| IK Rating: | IK08 |
| Mounting Type: | Surface |
| Warranty: | 5 Years |
| Life Time Hours: | 50,000 |
DIMENSIONS & WEIGHT
| Length: | 321mm |
| Width: | 167mm |
| Depth: | 83mm |
| Weight: | 1454g |
ELECTRICAL
| Input Voltage: | 220-240V |
| Input Frequency: | 50Hz |
| Wattage: | 10W |
| Classification: | Class II |
| Operating Temperature: | 5 to +45°C |
| Power Factor: | 0.3 |
OPTICAL
| Colour Temperature: | 6500K |
| CRI: | 80CRI |
| Beam Angle: | 135º |
EMERGENCY
| Battery Type: | LiFePO4 6.4V |
| Battery Capacity: | 6.6Ah |
| Battery Warranty: | 5 Years |
| Recharge Time: | 24 Hours |
| Battery Replaceable: | Yes |
| Mode of Operation: | Non-maintained |
| Test Procedure: | Manual |
| Emergency Duration: | 3 Hours |
| Emergency Lumen Output: | 1000lm/1500lm |
