Discontinued Product
BLE CHELSEA IP20 Large 425mm Circular Emergency Amenity Light - Chrome (EL-121001-CH-M3)
Discontinued
Alternative Products

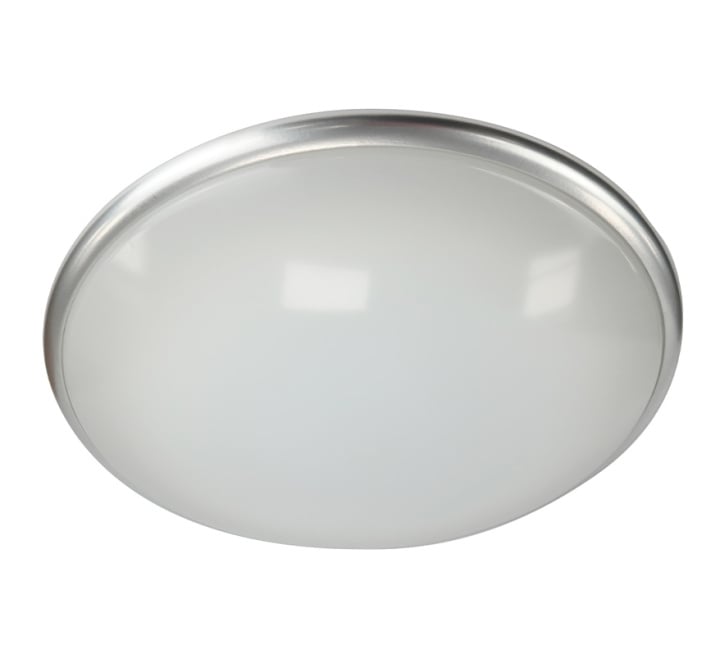

Product Details for BLE CHELSEA IP20 Large 425mm Circular Emergency Amenity Light - Chrome (EL-121001-CH-M3)
The BLE CHELSEA (BD7) Low Profile Amenity Light is a stylish emergency light featuring a modern low-profile decorative design and a robust polycarbonate opal diffuser, delivering both functionality and aesthetics.
Designed as an LED internal amenity light, it provides reliable and energy-efficient illumination. With an IP20 protection rating, it offers suitable protection for indoor applications. The light is proudly made in Britain, ensuring quality craftsmanship and durability.
The BLE CHELSEA (BD7) Low Profile Amenity Light features a healthy charge indicator, allowing for easy monitoring of the battery's charge status. This ensures readiness in emergency situations or power outages.
With reduced power consumption, this light is designed to be energy-efficient without compromising on illumination quality. Its surface-mounted installation makes it convenient and hassle-free.
The light is constructed with a high-quality metal housing, providing durability and a sleek appearance. The impact-modified polycarbonate opal diffuser ensures a soft and diffused light output, enhancing the overall ambience.
This light is equipped with a 3.6V 3.0Ah NiCD battery, ensuring reliable power supply during critical moments. With a 24-hour recharge time, it quickly regains full power for continued operation.
Key Features of the EL-121001-CH-M3 |
|---|
|
> LED Internal Amenity Light
> IP20 Protection Rating > 3 year guarantee (excluding batteries) > Made in Britain > Stylish and modern design > Healthy charge indicator > Reduced power consumption > Surface mounted > High quality metal housing > Impact modified polycarbonate opal diffuser > 24 hour recharge time > 3.6V 3.0Ah NiCD battery |
| Brand | BLE Lighting & Power |
|---|---|
| Manufacturer Part No. | EL-121001-CH-M3 |
FAQ’s for BLE CHELSEA IP20 Large 425mm Circular Emergency Amenity Light - Chrome (EL-121001-CH-M3)
Product Specification for BLE CHELSEA IP20 Large 425mm Circular Emergency Amenity Light - Chrome (EL-121001-CH-M3)
GENERAL DATA
| Light Source | LED |
| Light Source Replaceable | Yes |
| Material | Powder Coated Aluminium |
| Diffuser Type | Opal |
| Diffuser Material | Polycarbonate |
| IP Rating | IP20 |
| Mounting Type | Surface |
| Warranty (Years) | 3 |
| Life Time Hours | 50,000 |
DIMENSIONS & WEIGHT
| Depth (mm) | 110 |
| Diameter (mm) | 425 |
| Weight (kg) | 2200 |
ELECTRICAL
| Input Voltage (V) | 220-240 |
| Input Frequency (Hz) | 50 |
| Wattage (W) | 14 |
| Classification | Class I |
| Operating Temperature (°c) | 0 to +40 |
| Power Factor | 0.94 |
OPTICAL
| Colour Temperature | 6500K |
| CRI | 70 |
| Beam Angle (º) | 120 |
EMERGENCY
| Battery Type | NiCD 3.6V |
| Battery Capacity | 3.0Ah |
| Battery Warranty (Years) | 1 |
| Recharge Time (hrs) | 24 |
| Battery Replaceable | Yes |
| Test Procedure | Manual |
| Emergency Duration (Hrs) | 3 |
