Apollo XP95 Marine DIN-Rail Zone Monitor (55000-773MAR)
SKU
55000-773MAR
£118.76
£98.97
Apollo XP95 Marine DIN-Rail Zone Monitor (55000-773MAR)
Available on Backorder
This item is not currently in stock, but it is available to backorder. Contact us for lead time.
Product Details for Apollo XP95 Marine DIN-Rail Zone Monitor (55000-773MAR)

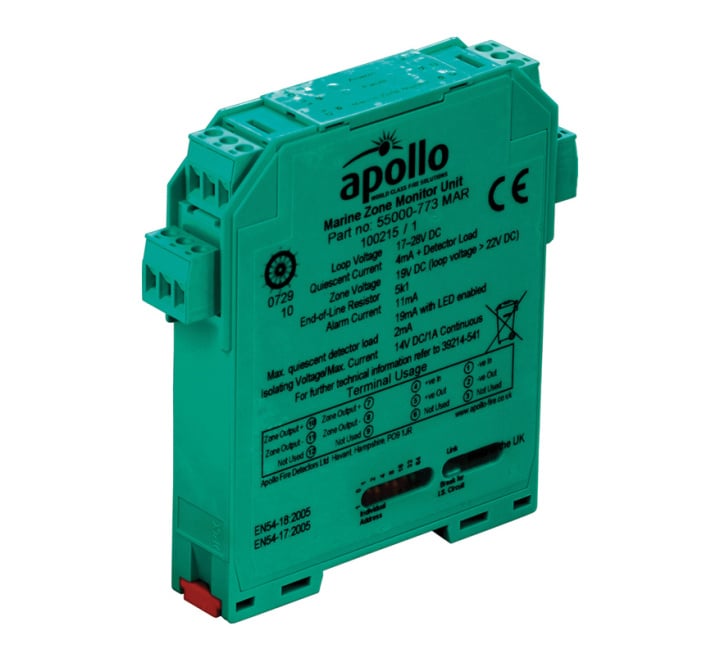

The Apollo XP95 Marine DIN-Rail Zone Monitor powers and controls the operation of a zone of up to 20 conventional fire detectors from a loop of XP95 addressable detectors and ancillary devices. This unit needs to be installed in a suitable enclosure (Part No. 29600- 239/240 or equivalent) and secured using the end stops.
Key Features of the 55000-773MAR |
|---|
|
> EN 54-17 & EN 54-18 Certified
> Allows conventional detection zones to be easily added to addressable systems > Allows DIN-Rail mounting > XP95, Discovery compatible > Suitable for marine applications |
| Brand | Apollo Fire Detectors |
|---|---|
| Manufacturer Part No. | 55000-773MAR |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Apollo XP95, Apollo Discovery, Apollo CoreProtocol |
| Colour | Green |
| Warranty | 10 Years |
Write Your Own Review
FAQ’s for Apollo XP95 Marine DIN-Rail Zone Monitor (55000-773MAR)
No questions yet. Be the first to ask the question!
Product Specification for Apollo XP95 Marine DIN-Rail Zone Monitor (55000-773MAR)
| Product code: | 55000-773MAR |
| Description: | Apollo Marine DIN-Rail Zone Monitor |
| Dimensions: | W:107mm x L:110mm x D:20mm |
| Approvals: | ABS, ESC, MED |
| Supply voltage: | 17 - 28V dc |
| Power-up surge current: | 2.8mA |
| Max. power-up time: | <1 second |
| Stabilisation time on power-up: | 4s |
| Humidity: | 0% to 95% (no condensation or icing) |
| Storage temperature: | -20 to 70°C |
| IP Rating: | IP20 |
| Warranty: | 10 year |
| Weight: | 95g |
