Apollo XP95 Marine DIN-Rail Mini Switch Monitor [SIL2] (55000-775MAR)
SKU
55000-775MAR
£63.64
£53.03
Apollo XP95 Marine DIN-Rail Mini Switch Monitor [SIL2] (55000-775MAR)
Available on Backorder
This item is not currently in stock, but it is available to backorder. Contact us for lead time.
Product Details for Apollo XP95 Marine DIN-Rail Mini Switch Monitor [SIL2] (55000-775MAR)

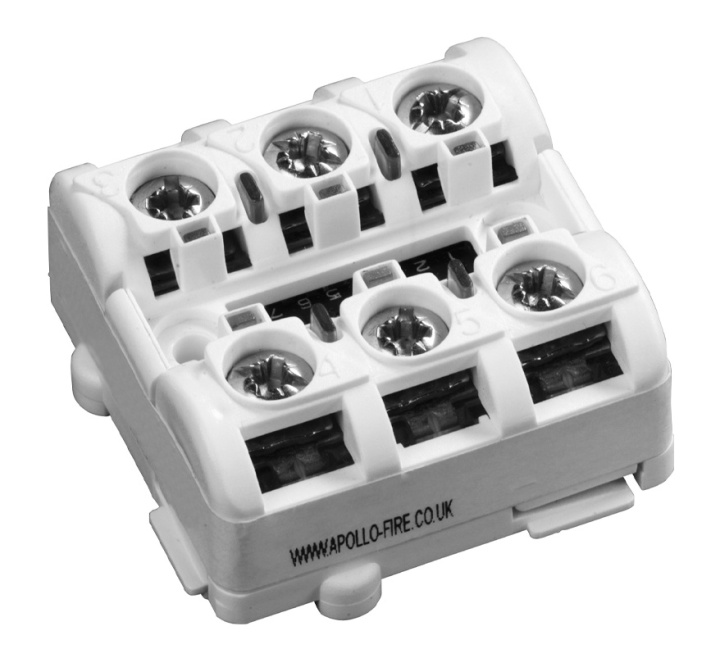

The Apollo XP95 Marine DIN-Rail Mini Switch Monitor Module is a miniature interface with an entirely new housing. The unit is designed to fit into equipment with limited space or mounted within an enclosure such as a manual call point.
Key Features of the 55000-775MAR |
|---|
|
> Designed for use where space is limited
> Isolated as standard > Interrupt/non interrupt in one unit > ‘Pre-alarm’ status available > Three coloured LEDs giving clear status indication > Designed for marine applications |
| Brand | Apollo Fire Detectors |
|---|---|
| Manufacturer Part No. | 55000-775MAR |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Apollo XP95, Apollo Discovery, Apollo CoreProtocol |
| Warranty | 10 Years |
Write Your Own Review
FAQ’s for Apollo XP95 Marine DIN-Rail Mini Switch Monitor [SIL2] (55000-775MAR)
No questions yet. Be the first to ask the question!
Product Specification for Apollo XP95 Marine DIN-Rail Mini Switch Monitor [SIL2] (55000-775MAR)
| Product code: | 55000-775MAR |
| Description: | Apollo XP95 Marine DIN-Rail Mini Switch Monitor [SIL2] |
| Dimensions: | W:39mm x L:39mm x D:20mm |
| Colour: | White |
| Standards / Approvals: | EN-54-17, EN54-18 / LR, ESC, MED |
| Supply voltage: | 17 to 28V dc |
| Power-up surge current: | 0.8mA |
| Quiescent current: | 0.2mA, 20kΩ EOL fitted |
| Humidity: | 0 - 95% (no condensation or icing) |
| Operating temperature: | -20 to 60°C |
| IP Rating: | IP20 |
| Warranty: | 10 year |
| Weight: | 30g |
