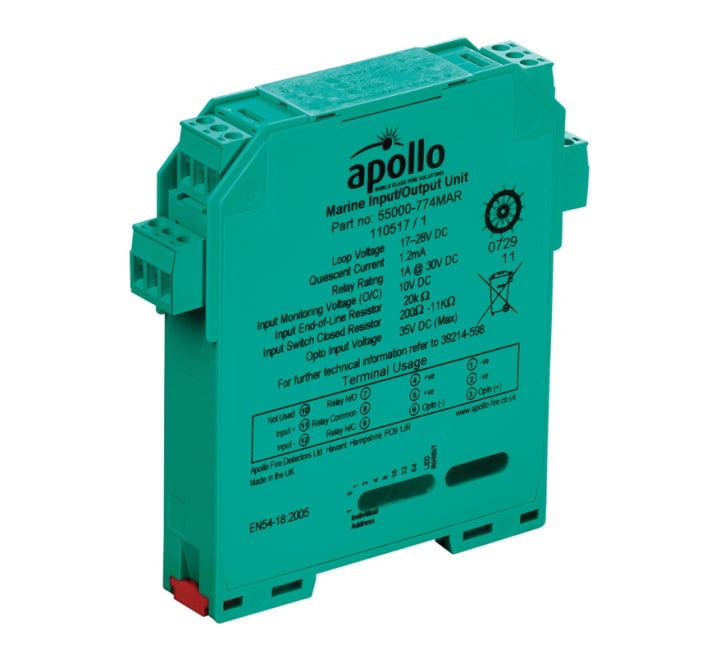

Apollo XP95 Marine DIN-Rail Input/Output Module [SIL2] (55000-774MAR)
SKU
55000-774MAR
£114.30
£95.25
Apollo XP95 Marine DIN-Rail Input/Output Module [SIL2] (55000-774MAR)
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for Apollo XP95 Marine DIN-Rail Input/Output Module [SIL2] (55000-774MAR)
The Apollo XP95 Marine DIN-Rail Input/Output Module provides a voltage-free, single pole, changeover relay output, a single, monitored switch input and an unmonitored, non-polarised opto-coupled input.
Key Features of the 55000-774MAR |
|---|
|
> Suitable for marine applications
> It can report fault, switch open and switch closed levels > Three visible LEDs > Capable of switching up to 1A at 30Vdc > Fits a standard 35mm DIN-Rail > SIL level 2 certified |
| Brand | Apollo Fire Detectors |
|---|---|
| Manufacturer Part No. | 55000-774MAR |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Apollo XP95, Apollo Discovery, Apollo CoreProtocol |
| Colour | Green |
| Warranty | 10 Years |
Write Your Own Review
FAQ’s for Apollo XP95 Marine DIN-Rail Input/Output Module [SIL2] (55000-774MAR)
No questions yet. Be the first to ask the question!
Product Specification for Apollo XP95 Marine DIN-Rail Input/Output Module [SIL2] (55000-774MAR)
| Product code: | 55000-774MAR |
| Description: | Apollo XP95 Marine DIN-Rail Input/Output Module [SIL2] |
| Approvals: | ESC, MEDZ |
| Quiescent current: | 31200μA (tested @ 28V dc) |
| Supply voltage: | 17 to 28V dc |
| Power-up surge current: | 3.5mA |
| Humidity: | 0% to 95% (no condensation or icing) |
| Operating temperature: | 70°C max. |
| IP Rating: | IP20 |
| Warranty: | 10 year |
