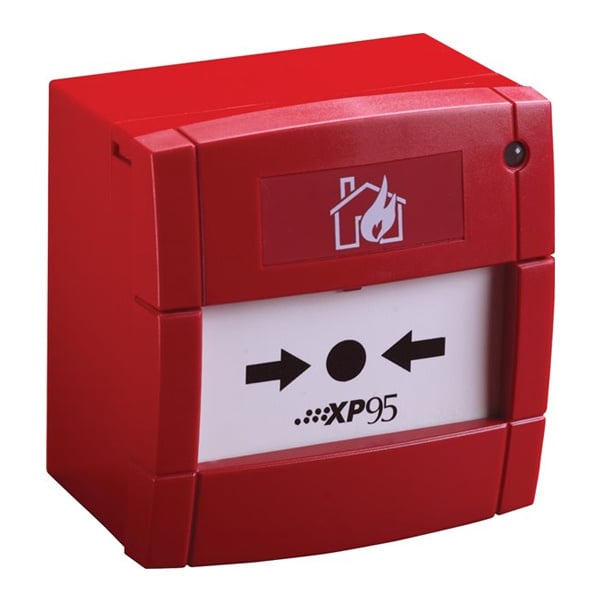

Apollo XP95 Manual Call Point with Isolator (55100-908APO)
SKU
55100-908APO
£47.50 £39.58
Apollo XP95 Manual Call Point with Isolator - 55100-908APO
- Buy 10 for £47.11 £39.26 each and save 1%
The Apollo XP95 EN54-11:2001 compliant Manual Call Point (MCP) is based on the KAC conventional MCP range. It is electronically and mechanically backward compatible with previous Apollo call points based on KAC’s World Series product.
Operation
The address of each call point is set at the commissioning stage by means of a seven-segment DIL switch.
A single bi-coloured alarm LED is provided on the call point. This LED is controlled, independently of the call point, by the control panel. The red LED is lit when the call point has been activated. An amber/yellow LED indicates a fault.
Call points can be remotely tested from the panel by transmission of a single bit in the communications protocol. Call points respond by providing a value of 64 which corresponds to the alarm value.
Options
XP95 Manual Call Points are available with or without an isolator. Each version is available with a resettable element and a backbox for surface mounting as standard.
Communication
Apollo XP95
Backward Compatibility
The device is compatible with Series 90, Discovery® and XPlorer systems.
Watch the Video
| Key Features |
|---|
| > ‘Plug and Play’ terminal connections for fast wiring > Continuity link for wiring test before commissioning > Reports an alarm in under 0.2 seconds > Resettable element > Built-in isolator |
| Manufacturer | Apollo Fire Detectors |
|---|---|
| MPN | 55100-908APO |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Apollo XP95, Apollo Discovery, Apollo CoreProtocol |
| Colour | Red |
| Warranty | 10 Years |
Write Your Own Review
Sort By:
No questions yet. Be the first to ask the question!
| Product code: | 55100-908APO |
| Description: | Apollo XP95 Manual Call Point - Isolating |
| Dimensions: | W:89mm x L:93mm D:26.5mm |
| Detection of principle: | Operation of a switch |
| Standards: | EN54-17 |
| Approvals: | LPCB, CPR |
| Colour: | Red |
| Materials: | Housing: Polycarbonate, ABS |
| Protocol voltage: | 5 - 9V peak to peak |
| Power-up surge current: | 1mA |
| Max. power-up time: | 1 second |
| Quiescent current: | 100μA (tested @ 24Vdc) |
| Humidity: | 0 - 95% (no condensation or icing) |
| Operating temperature: | -20 to 60°C |
| Storage temperature: | -30 to 80°C |
| IP rating: | IP24 |
| Warranty: | 10 year |
| Weight: | 151g |
