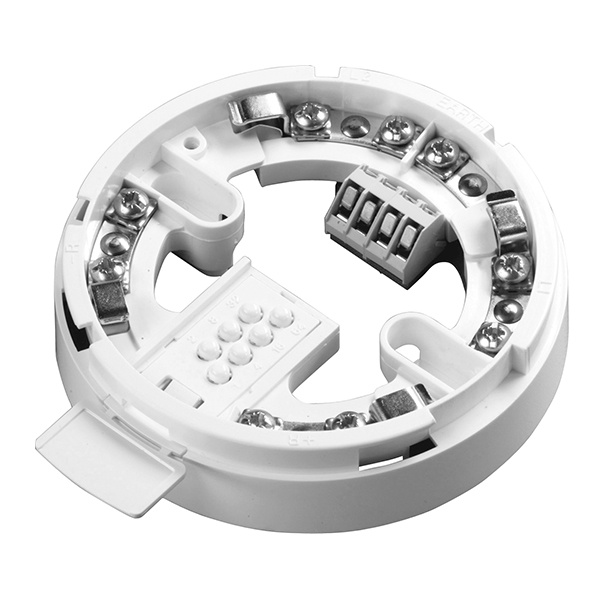

Apollo XP95 Intelligent Heater Detector Base (45681-219APO)
SKU
45681-219APO
£19.81 £16.51
Apollo XP95 Intelligent Heater Detector Base (45681-219APO)
- Buy 10 for £19.66 £16.38 each and save 1%
Product Details for Apollo XP95 Intelligent Heater Detector Base (45681-219APO)
The Intelligent Heater Base is designed to be used in cold climates where environmental conditions could result in either icing or condensation affecting the operation of detectors. It is recommended that the heater base be used in conjunction with either a Waterproof Base Cover or Deckhead Mounting Box to minimise moisture ingress
Application
The heater base contains an array of high powered resistors which increase the chamber temperature of a detector fitted to the heater base by approximately 10°C. It is recommended that the heater base be used in conjunction with either a waterproof base cover, part number 45681-519, or a deckhead mounting box, part number 29600-217. The use of these accessories will reduce the risk of moisture ingress.
Note: The waterproof base cover is used for surface wiring and is not normally used in the United Kingdom.
Watch the Video
Key Features of the 45681-219APO |
|---|
| > Raises the ambient temperature of a detector chamber by approximately 10°C > Limits the risks or potential for losses of functionality of detectors installed in cold conditions. |
| Brand | Apollo Fire Detectors |
|---|---|
| Manufacturer Part No. | 45681-219APO |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Apollo XP95, Apollo Discovery |
| Colour | White |
| Warranty | 10 Years |
Write Your Own Review
FAQ’s for Apollo XP95 Intelligent Heater Detector Base (45681-219APO)
No questions yet. Be the first to ask the question!
Product Specification for Apollo XP95 Intelligent Heater Detector Base (45681-219APO)
| Product code: | 45681-219APO |
| Description: | Apollo XPERT 7 Base - Heated |
| Resistance: | Addressable: 240Ω Orbis: 300Ω |
| Voltage: | Addressable: 28V Orbis: 28V |
| Current @24V: | Addressable: 125mA Orbis: 100mA |
| Power @ 24V: | Addressable: 3.3W Orbis: 2.6W |
| Operating temperature: | Addressable: –30°C to +40°C Orbis: –40°C to +50°C |
| Warranty: | 10 year |
| Note: It is is recommended that the heater base supply be controlled by a suitable commercially available thermostatic switch for environments that exceed an ambient temperature of 20°C | |
