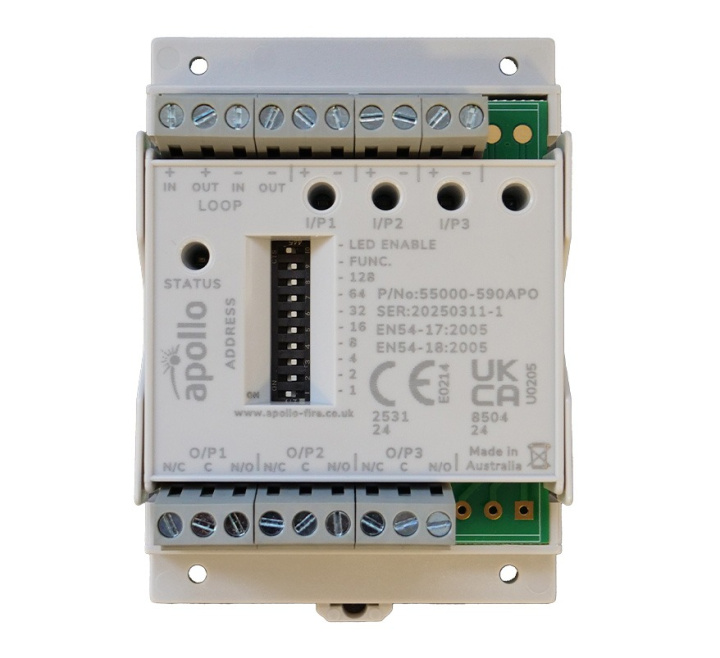

Apollo XP95 Three Channel Input/Output Module (Isolating) (55000-590APO)
Limited Stock
Product Details for Apollo XP95 Three Channel Input/Output Module (Isolating) (55000-590APO)
The Apollo XP95 Three Channel Input/Output module provides three single pole, voltage-free, clean contact changeover relay outputs with common, normally open and normally closed terminals provided for field cabling, and three monitored switch inputs. The inputs are monitored for short and open circuit conditions and are protected against accidental connection to the detection loop.
The device is loop-powered and incorporates bidirectional isolation circuitry to provide against detection loop short circuits. On-board LED status indication is provided for service and commissioning purposes, a feature that can be deactivated during normal operation to reduce the current draw on the system.
A 10-way DIP switch is provided to set the device address and LED control.
Key Features of the 55000-590APO |
|---|
|
> Uses a single address
> Built-in short circuit isolator > 3mm screw fixing (supplied) or DIN Rail mounting option > Diagnostic LED indications > Monitored inputs > Accessories – 29600-239 DIN Rail Interface enclosure (120mm DIN Rail) / 29600-240 DIN Rail Interface enclosure (245mm DIN Rail) > XP95, Discovery and CoreProtocol compatible |
| Brand | Apollo Fire Detectors |
|---|---|
| Manufacturer Part No. | 55000-590APO |
| Product Series | XP95 |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Apollo XP95, Apollo Discovery, Apollo CoreProtocol |
| Warranty | 10 Years |
FAQ’s for Apollo XP95 Three Channel Input/Output Module (Isolating) (55000-590APO)
Product Specification for Apollo XP95 Three Channel Input/Output Module (Isolating) (55000-590APO)
| Product no.: | 55000-590APO |
| Description: | Apollo XP95 Input/Output Module - Three Channel – Isolating |
| Dimensions: | W:95mm x L:25mm x H:68mm |
| Supply voltage: | 17V - 28 VDC |
| Digital communication protocol compatibility: | XP95, Discovery and CoreProtocol |
| Max. current consumption @ 27VDC LED enabled: | Switch-on surge current: 5.97 mA Quiescent current @ 27VDC: 0.66 mA Max. current LEDs on: 6.10mA Max. current LEDs disabled: 3.07mA |
| Max. line voltage: | Vmax 28 VDC |
| Nominal line voltage: | Vnom 27VDC |
| Min. line voltage: | Vmin 17VDC |
| Voltage device isolates: | Vso min 12VDC, max 16VDC |
| Voltage device reconnects: | Vsc min 12VDC, Vsc max. 17VDC |
| Max. rated current: | lc max. 1A |
| Max. rated switching current: | ls max. 3.3A |
| Max. leakage current: | 1l max. 32mA |
| Max. series impedance switch closed: | Zc max. 60mΩ |
| Operating temperature: | -40°C to +40°C |
| Humidity: | 0 - 95% RH |
| Standards & approvals: | EN54-17, EN54-18, CPR |
| Material: | Flame-retardant polycarbonate |
| Weight: | 76g |
| Note: Must be used in a suitable enclosure/mounting box (not supplied) such as Apollo’s DIN Rail Interface Enclosure (29600-239 or 29600-240) |
