Discontinued Product
This product has been discontinued and is no longer available for purchase. Please contact us for further information and advice on suitable alternatives.

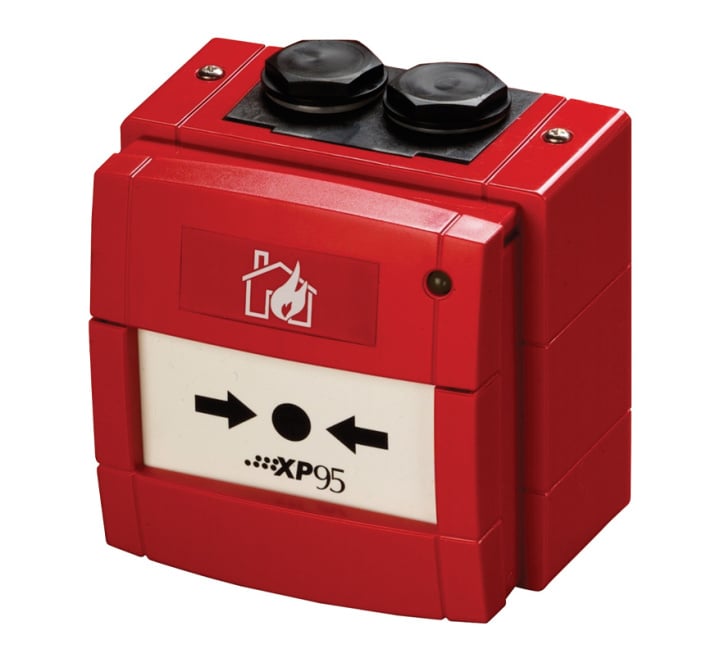

Apollo XP95 I.S. Weatherproof Manual Call Point (KAC Style) (55100-940APO)
SKU
55100-940APO
Apollo XP95 I.S. Weatherproof Manual Call Point (KAC Style) (55100-940APO)
Discontinued
Alternative Products
Product Details for Apollo XP95 I.S. Weatherproof Manual Call Point (KAC Style) (55100-940APO)
The Apollo XP95 Intrinsically Safe Weatherproof Manual Call Point is used to manually initiate an alarm signal on the fire detection system. The Manual Call Point is suitable for use in areas where explosive atmospheres are, or may be, present. This version uses the universal KAC-style housing and reset mechanism.
Key Features of the 55100-940APO |
|---|
|
> Suitable for intrinsically safe and weatherproof applications
> Suitable for use on Zones 2, 1 & 0 > EN 54-11 Certified > Reports an alarm in under 0.2 seconds > XP95 & Discovery compatible |
| Brand | Apollo Fire Detectors |
|---|---|
| Manufacturer Part No. | 55100-940APO |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Apollo XP95, Apollo Discovery, Apollo CoreProtocol |
| Warranty | 10 Years |
FAQ’s for Apollo XP95 I.S. Weatherproof Manual Call Point (KAC Style) (55100-940APO)
No questions yet. Be the first to ask the question!
Product Specification for Apollo XP95 I.S. Weatherproof Manual Call Point (KAC Style) (55100-940APO)
| Product code: | 55100-940APO |
| Description: | Apollo XP95 I.S. Manual Call Point |
| Dimensions: | W:93mm x L:97.5mm x D:71mm |
| Fire type: | Fast and slow burning fires |
| Chamber type: | Chevron |
| Colour: | Red |
| Materials housing: | Polycarbonate, ABS |
| Detection principle: | Operation of a switch |
| Key type: | KAC Manal Call Point test & reset key |
| Approvals: | ESC, LPCB, IECEx, DNV.GL, BASEEFA, CCCf, CCS, CPR, PESO (CCoE), MED |
| Protocol voltage: | 5 to 9V peak to peak |
| Power-up surge current: | 1mA |
| Quiescent current: | 300μA (tested @ 24V dc) |
| Polarity: | L1 & L2 are polarity sensitive |
| Humidity: | 0 - 95% RH |
| IP Rating: | IP67 |
| Warranty: | 3 year |
| Weight: | 240g |
