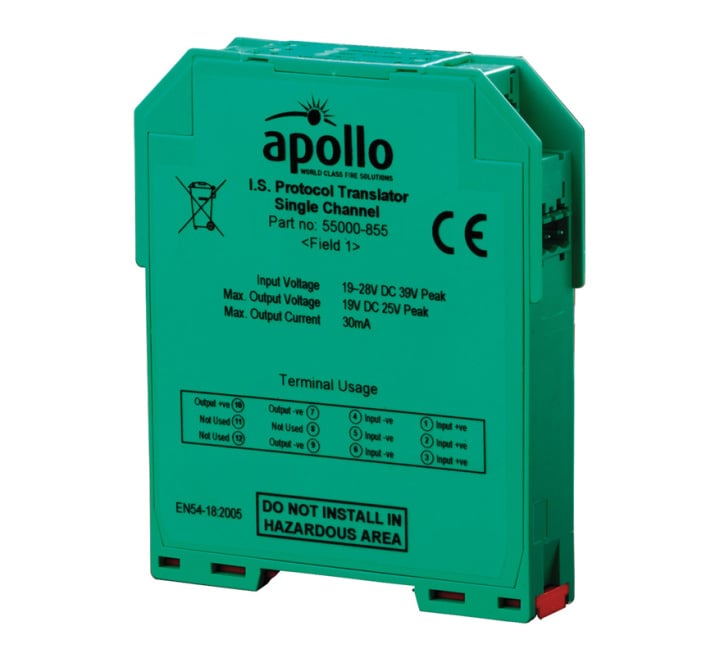

Apollo XP95 I.S. Protocol Translator [SIL2] (55000-855APO)
Product Details for Apollo XP95 I.S. Protocol Translator [SIL2] (55000-855APO)
The Apollo XP95 Intrinsically Safe (I.S.) Protocol Translator is installed in the safe area ensuring the integrity of communication between control equipment and field devices and safety within the limits of BASEEFA approvals.
Operation
The translator is a loop-powered device which draws a low quiescent current and is therefore transparent to both the loop driver and the I.S. detectors. Since the translator is used within the safe area, i.e., before the safety barrier, no I.S. certification is necessary. The translator falls within the generic description ‘Safe Area Apparatus’.
The translator is housed in a moulded plastic enclosure which can be either clipped onto a standard 35 mm DIN-Rail (DIN 46277) or panel mounted by using pull-out latches in the base. The translator is available in single-channel or dualchannel versions. Each channel should only be connected to a single intrinsically safe circuit through an appropriate safety barrier.
Key Features of the 55000-855APO |
|---|
|
> I.S. protocol translator
> For use in the safe area > Ensures integrity of device communication |
| Brand | Apollo Fire Detectors |
|---|---|
| Manufacturer Part No. | 55000-855APO |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Apollo XP95, Apollo Discovery, Apollo CoreProtocol |
| Colour | Green |
| Warranty | 10 Years |
FAQ’s for Apollo XP95 I.S. Protocol Translator [SIL2] (55000-855APO)
Product Specification for Apollo XP95 I.S. Protocol Translator [SIL2] (55000-855APO)
| Product code: | 55000-855APO |
| Description: | Apollo XP95 Protocol Translator [SIL2] |
| Dimensions: | W:92.5mm x L:110mm x D:20mm |
| Colour: | Green |
| Materials housing: |
Polycarbonate |
| Approvals: | LPCB, LR, DNV.GL, CPR, ESC, MED |
| Protocol voltage: |
5 to 9V peak to peak |
| Supply voltage: |
19 to 28V dc |
| Operating temperature: | -20 to 60°C |
| Humidity: | 10 - 95% (no condensation or icing) |
| Warranty: | 10 year |
| Weight: | 100g |
