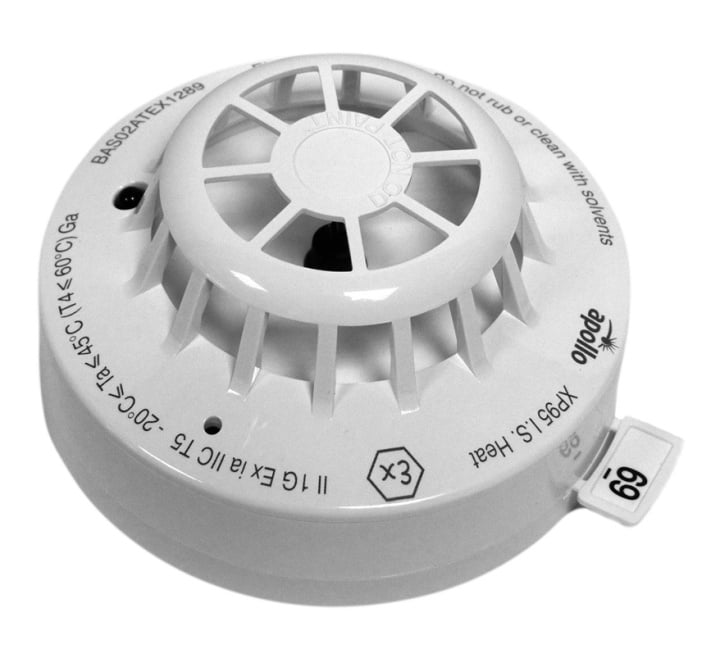

Apollo XP95 I.S. A2S Heat Detector (55000-440APO)
SKU
55000-440APO
£140.24
£116.87
Apollo XP95 I.S. A2S Heat Detector (55000-440APO)
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for Apollo XP95 I.S. A2S Heat Detector (55000-440APO)
The Apollo XP95 Intrinsically Safe (I.S.) Heat Detector monitors temperature by using a single thermistor which provides a count output proportional to the external air temperature.
The XP95 I.S. Heat Detector is distinguishable from XP95 I.S. smoke detectors by its low air-flow resistance case which allows good contact between the sensing thermistor and the surrounding air.
Key Features of the 55000-440APO |
|---|
|
> Intrinsically Safe
> Ideal for environments that are dirty or smoky under normal circumstances > Unaffected by wind or atmospheric pressure |
| Brand | Apollo Fire Detectors |
|---|---|
| Manufacturer Part No. | 55000-440APO |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Apollo XP95, Apollo Discovery, Apollo CoreProtocol |
| Sensor Type | Thermistor |
| Detectable Medium | Heat |
| Colour | White |
| Warranty | 10 Years |
Write Your Own Review
FAQ’s for Apollo XP95 I.S. A2S Heat Detector (55000-440APO)
No questions yet. Be the first to ask the question!
Product Specification for Apollo XP95 I.S. A2S Heat Detector (55000-440APO)
| Product code: | 55000-440APO |
| Description: | Apollo XP95 I.S. Heat Detector (A2S) |
| Applications: | Dusty environments Hazardous areas Medium to large buildings Offshore platforms Refineries |
| Colour: | White |
| Approvals: | BV, BASEEFA, CCS, LR, PESO (CCoE), VdS, IECEx, DNV.GL, LPCB, CPR, BOSEC, MED, ESC |
| Protocol voltage: | 5 to 9V peak to peak |
| Quiescent current: | 300μA (tested @ 24V dc) |
| Polarity: | L1 & L2 are polarity sensitive |
| Humidity: | No condensation or icing |
| Ambient temperature: | -20 to 60°C |
| Warranty: | 10 year |
