Apollo XP95 Addressable Door Retainer (ADR) - 55000-982APO

SKU
55000-982APO
£180.00 £150.00
Apollo XP95 Addressable Door Retainer (ADR) - 55000-982APO
  • Buy 10 for £178.56 £148.80 each and save 1%

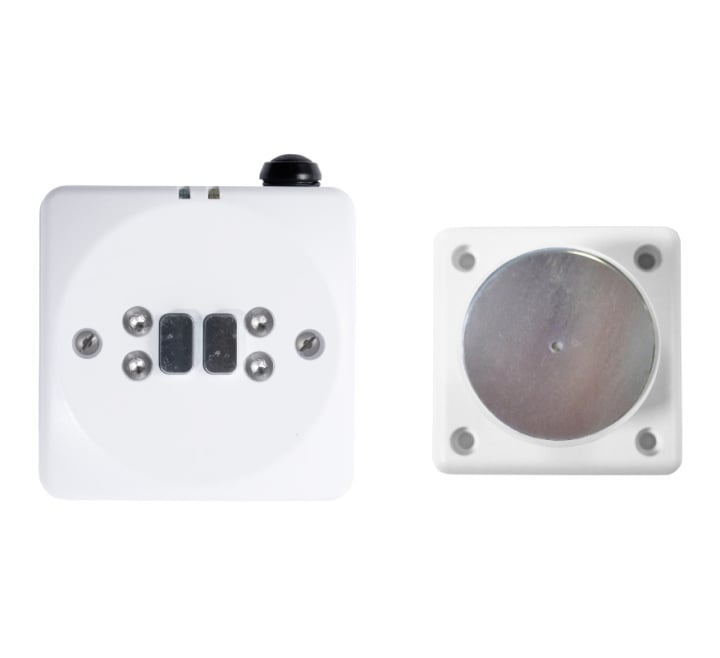

The Apollo 55000-982APO is a loop-powered, addressable door holder.

This innovative product combines smart design with practicality and safety, offering a range of benefits that cater to the needs of modern buildings.

With its versatile programming, cost-effective setup, and commitment to safety standards, the ADR is poised to make a lasting impact in the field of fire safety.

Efficient Emergency Protocols: Addressable Functionality

One of the key features of the ADR is its addressable functionality, which allows for streamlined programming in complex buildings. This capability becomes crucial during evacuations and fire alarms, as the ADR can be programmed to close fire doors in specific areas while facilitating smooth evacuations in others.

The level of control the ADR offers enhances overall safety by containing potential hazards and ensuring occupants can exit the building safely. An attribute especially valuable in structures where coordinated evacuation is essential.

Cost-Effective Design: Simplified Installation

The ADR is cost-effective and time efficient as an all-in-one product. Being loop-powered eliminates the need for an electrician to handle mains voltage, reducing the cost of trade on-site in installation.
Moreover, this also removes the need for accompanying components such as an I/O unit, mains isolator and conventional retainer, simplifying the installation and allowing it to be conducted entirely by proficient fire alarm engineers.

Comprehensive Safety: Suitable for All Fire Doors

Safety is paramount in fire emergencies, and the ADR doesn't compromise on this front. It is designed for use on all fire doors, including critical actuation doors. The ADR's direct connection to the fire panel and its patented permanent magnet technology qualifies it as a BS 7273-4 Category A fire door holder, aligning with established safety standards. This categorisation offers the highest degree of safety whilst reducing confusion around suitability – ensuring robust safeguarding of building occupants.

The Path Forward in Fire Safety

As we navigate an ever-changing landscape of technology, fire safety remains a priority. The ADR represents an innovative solution that marries functionality with fire safety. Its adaptable programming, economical setup, and adherence to safety standards position it as an invaluable tool for modern buildings striving to enhance emergency protocols.


Key Features
> Integrated loop isolator
> Extra low voltage usage
> Suitable for critical actuation (Category A) installations (when connected to a compliant panel)
> Failsafe by design
> Patented permanent magnet technology
> Doors and zones can be individually controlled
> 200N holding force rating
> Surface or semi-flush wall mounted
> Floor mounting options via standard bracket
More Information
ManufacturerApollo Fire Detectors
MPN55000-982APO
Write Your Own Review
You're reviewing:Apollo XP95 Addressable Door Retainer (ADR) - 55000-982APO
Your Rating
Loading...

Sort By:

Ask Question

All questions will be displayed after moderation.

No questions yet. Be the first to ask the question!
Supply voltage17 V to 28 V dc
Digital communicationXP95 compatible
Modulation Voltage5 V - 9 V
Current ConsumptionSwitch ON Surge and Quiescent
Current Consumption3.7 mA Max
EDL4
Rated Holding Force200 N
Initialisation and Self-Check Time (typical)45 minutes
Typical Release-Hold Cycle8 seconds (will release within 3 seconds)
Status IndicatorFlashing Amber Every 5s - Charging
Flashing Green Every 5s - Normal (Charged)
Continuous Amber Isolator Active State or Fault (Charged)
Flashing Amber Every 1s - Isolator Active State or Fault (Charging)
Operating temperature0°C to + 40°C
Standards and ApprovalsEN 1155:1997 + A1:2002, EN 54-17:2005, EN 54-18:2005, CPR
IP RatingIP3X
Dimensions87.9mm wide x 87.9 high x 83.5mm deep
Weight515 g
MaterialsHousing: White flame-retardant ABS
