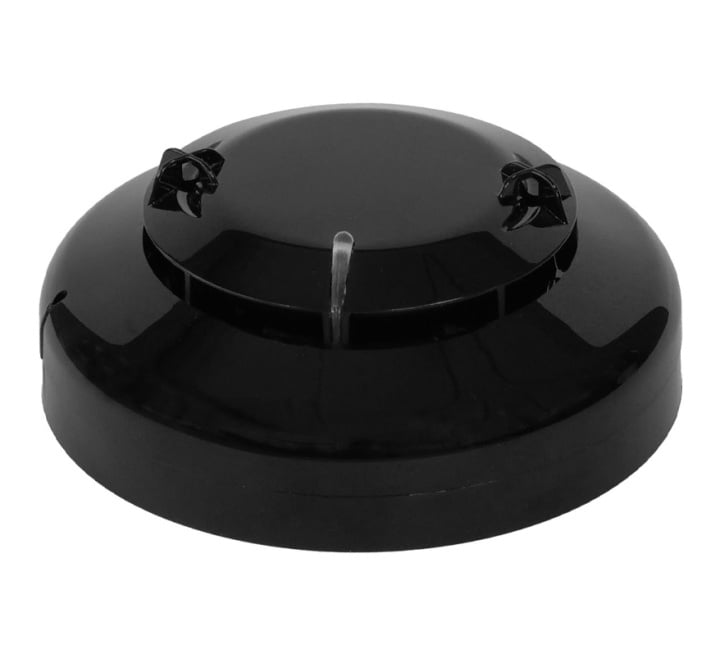

Apollo Soteria Multi-Sensor Detector (Black) (SA5100-760APO)
SKU
SA5100-760APO
£56.65
£47.21
Apollo Soteria Multi-Sensor Detector (Optical/Heat) (Black) (SA5100-760APO)
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for Apollo Soteria Multi-Sensor Detector (Black) (SA5100-760APO)
The Apollo Soteria Multi-Sensor Detector uses advanced optical sensing technology, PureLight, to detect smoke particles entering the chamber and is fitted with two thermistors for detecting heat. It can be switched to detect smoke, heat or a combination of both offering greater flexibility. It easily discriminates against false alarm stimuli and is a great environmentally friendly alternative to ionisation detectors.
Key Features of the SA5100-760APO |
|---|
|
> Five modes of operation for ultimate fire detection and false alarm management in a wide range of applications
> Utilises digital Core Protocol communications providing a range of advanced fire detection features > A sophisticated dynamic algorithm, providing transient rejection and compensation for drift while maintaining accurate sensitivity > FasTest for quicker testing of detectors > Integrated switchable isolator > Mounting base not included (sold separately) |
| Brand | Apollo Fire Detectors |
|---|---|
| Manufacturer Part No. | SA5100-760APO |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Apollo XP95, Apollo Discovery, Apollo CoreProtocol |
| Sensor Type | Combined Optical and Thermistor |
| Detectable Medium | Smoke, Heat |
| Colour | Black |
| Warranty | 10 Years |
Write Your Own Review
FAQ’s for Apollo Soteria Multi-Sensor Detector (Black) (SA5100-760APO)
No questions yet. Be the first to ask the question!
Product Specification for Apollo Soteria Multi-Sensor Detector (Black) (SA5100-760APO)
| Code: | SA5100-760APO |
| Description: | Apollo Soteria Multi-Sensor Detector (Optical/Heat) |
| Colour: | Black |
| Product diameter: | 103mm (4.06") |
| Product depth: | 55mm (2.17") |
| Approvals: | LPCB, BOSEC, VdS, CPR |
| Protocol voltage: | 5V (min.) 13V (max.) peak to peak |
| Quiescent current: | 600μA |
| Supply voltage: | 17V - 35V dc |
| Operating temperature: | -10 to 55°C (14 to 131°F) |
| IP Rating: | IP40 |
| Weight: | 100g |
