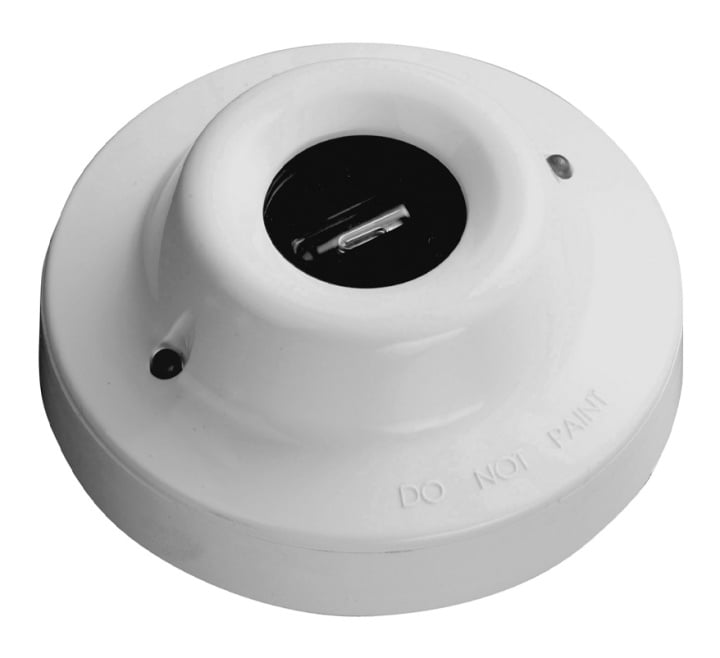

Apollo Series 65 Marine Base Mounted UV Flame Detector (55000-026MAR)
SKU
55000-026MAR
£959.11
£799.26
Apollo Series 65 Marine Base Mounted UV Flame Detector (55000-026MAR)
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for Apollo Series 65 Marine Base Mounted UV Flame Detector (55000-026MAR)
The Apollo Series 65 Marine Base Mounted Ultraviolet (UV) Flame Detector is designed to protect enclosed indoor areas where open flaming fires may be expected.
UV flame detectors are designed for use in enclosed spaces and require a clear line of sight within the area to be protected. They are unaffected by draughts or convection currents.
The detector has a fast-acting response to flames up to 25m away and is equipped with a single UV sensor with a narrow spectral response in order to discriminate between flames and most spurious sources of radiation.
Key Features of the 55000-026MAR |
|---|
|
> Responds to stationary flames with no flicker
> Sensitive to UV radiation emitted by flames during combustion > Compact flame detector which fits into 45681-200MAR base > Zone-powered > Approved for marine applications |
| Brand | Apollo Fire Detectors |
|---|---|
| Manufacturer Part No. | 55000-026MAR |
| Primary Power Source | 24V DC |
| System Type | Conventional |
| Detectable Medium | Flame |
| Warranty | 10 Years |
Write Your Own Review
FAQ’s for Apollo Series 65 Marine Base Mounted UV Flame Detector (55000-026MAR)
No questions yet. Be the first to ask the question!
Product Specification for Apollo Series 65 Marine Base Mounted UV Flame Detector (55000-026MAR)
| Product code: | 55000-026MAR |
| Description: | Apollo Series 65 Marine Base Mounted UV Flame Detector |
| Dimensions: | Diameter:100mm x D:40mm |
| Applications: | Car parks/loading bays Hospitals Industrial premises Warehouses |
| Fire type: | Fast burning, flaming fires |
| Range of view @ 25m: | 0.1m² n-heptane |
| Field of view: | 90° |
| Spectral response - UV: | 0.185 to 0.26μm |
| Sensitivity: | High-Class 1 |
| Colour: | White |
| Materials: | Housing: Polycarbonate Terminals: Nickel plated stainless steel |
| Approvals: | CCS, ABS, MED |
| Quiescent current: | 550μA |
| Supply voltage: | 17 to 28V dc |
| Holding voltage: | 6v |
| Min. voltage to light alarm LED: | 12V |
| Alarm: | Reset voltage: <1V Reset time: 1s Load: 420Ω in series with 2V drop |
| Humidity: | 0 - 95% (no condensation or icing) |
| Operating temperature: | -40 to 70°C |
| Storage temperature: | -40 to 85°C |
| IP Rating: | IP66 |
| Warranty: | 3 year |
| Weight: | 150g |
