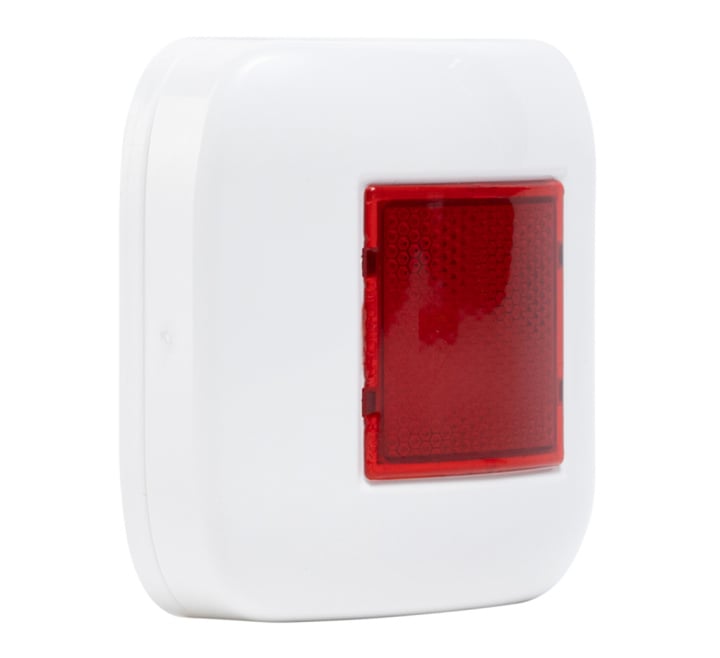

Apollo REACH Wireless Remote Indicator Module (RW1500-800APO)
Product Details for Apollo REACH Wireless Remote Indicator Module (RW1500-800APO)
The Apollo REACH RW1500-800APO is a wireless addressable remote indicator that can be used to indicate the activation of an individual device or zone.
Status LED
The REACH Wireless Remote Indicator is equipped with a visual LED Indicator; LED signals indicate functional status of the device.
Device Addressing
Device addressing is handled by the REACH Wireless Loop-Interface device (RW1700-030APO).
Devices are soft-addressed automatically when pairing with the Loop Interface and can be changed manually. Hard-addressing using Apollo XPERT cards are not supported.
Communication
REACH Wireless Devices use ‘radio-frequency’ wireless communication to connect to the Loop-Interface.
The Loop-Interface (RW1700-030APO) translates the wireless communication into wired Apollo protocol communication, with each device addressable individually by the fire panel. See datasheets for the Loop-Interface for more information.
Tamper detection
REACH Wireless devices contain an anti-tamper mechanism. In the event of removal from its base, it sends a tamper
detection message to the Loop-Interface.
Tampering detection is not signalled visually by the device LED.
Key Features of the RW1500-800APO |
|---|
|
> Compatible only with REACH Wireless
> Red LED with large diffuser for greater visibility > Bi-directional wireless communication > Dual channel redundancy > 5 year product warranty |
| Brand | Apollo Fire Detectors |
|---|---|
| Manufacturer Part No. | RW1500-800APO |
| Primary Power Source | Longlife Batteries (Lithium) |
| System Type | Wireless |
| Protocol Compatibility | Apollo XP95, Apollo Discovery, Apollo CoreProtocol |
| Warranty | 5 Years |
FAQ’s for Apollo REACH Wireless Remote Indicator Module (RW1500-800APO)
Product Specification for Apollo REACH Wireless Remote Indicator Module (RW1500-800APO)
| Part No | RW1500-800APO |
| Communication Range between Loop-Interface and Devices | 100m (in open space) |
| Field Device Radio Frequency Channel Pairs | 22 pairs |
| Radiated Power | 14 dBm (25 mW) |
| Battery Type | 2x VARTA CR123A Lithium 3 V, 1250mAh typical |
| Battery Lifespan | Five years in normal operation with good signal strength (no dropped messages) |
| Operating Temperature | -10°C to +55°C |
| Maximum Relative Humidity (non-condensing) | 95% |
| IP Rating | IP 42 |
| Standards and approvals | EN54-25 |
| Dimensions | 80 mm diameter x 80 mm height x 32 mm depth |
| Weight (including base and batteries) | 60 g |
| Digital Communication | Apollo protocol compatibility is handled via the Loop-Interface device, RW1700-030APO. |
