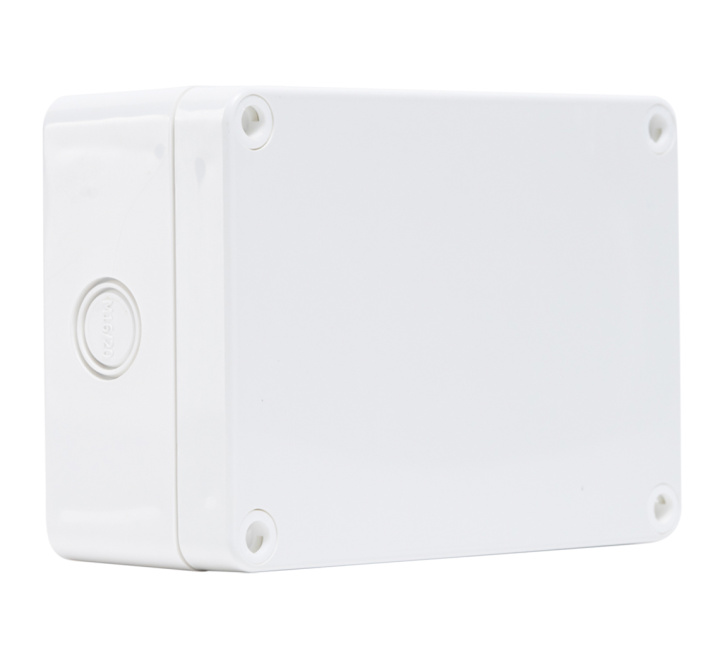

Apollo REACH Wireless Output Module (RW1700-052APO)
Product Details for Apollo REACH Wireless Output Module (RW1700-052APO)
The Apollo REACH RW1700-052APO Wireless Output Module is a wireless analogue addressable interface which allows simple integration of third-party equipment with the fire system. The unit is powered entirely from its internal battery supply and is fitted as standard with both a set of change over relay contacts and a 12/24V dc output. The output is capable of supplying power for operating low current third party equipment directly from the internal batteries.
Operating Principles
The RW1700-052APO REACH Wireless Output module works on an ON/OFF logic and does not rely on any special and/or intelligent communication protocol for its operation (i.e conventional call-points). See table 2 for connection requirements.
Status LED
When one or more faults are present in the system they are shown on the LCD and the fault LED is switched on yellow. LCD is ON only when the tamper switch is not activated (cover open) regardless of the configuration of the translator tamper fault.
Device Addressing
Device addressing is handled by the REACH Wireless Loop-Interface device (RW1700-030APO).
Devices are soft-addressed automatically when pairing with the Loop Interface and can be changed manually. Hard-addressing using Apollo XPERT cards are not supported.
Communication
REACH Wireless Devices use ‘radio-frequency’ wireless communication to connect to the Loop-Interface.
The Loop-Interface (RW1700-030APO) translates the wireless communication into wired Apollo protocol communication, with each device addressable individually by the fire panel. See datasheets for the Loop-Interface for more information.
Tamper detection
REACH Wireless devices contain an anti-tamper mechanism. In the event of removal from its base, it sends a tamper
detection message to the Loop-Interface.
Tampering detection is not signalled visually by the device LED.
Key Features of the RW1700-052APO |
|---|
|
> Output circuits are fully supervised for fault conditions
> Bi-directional wireless communication > Dual channel redundancy > 5 year product warranty |
| Brand | Apollo Fire Detectors |
|---|---|
| Manufacturer Part No. | RW1700-052APO |
| Primary Power Source | Longlife Batteries (Lithium) |
| System Type | Wireless |
| Protocol Compatibility | Apollo XP95, Apollo Discovery, Apollo CoreProtocol |
| Colour | White |
| Warranty | 5 Years |
FAQ’s for Apollo REACH Wireless Output Module (RW1700-052APO)
Product Specification for Apollo REACH Wireless Output Module (RW1700-052APO)
| Part No | RW1700-052APO |
| Communication Range between Loop-Interface and Devices | 100m (in open space) |
| Field Device Radio Frequency Channel Pairs | 22 pairs |
| Radiated Power | 14 dBm (25 mW) |
| Battery Type | 2x VARTA CR123A Lithium 3 V, 1250mAh typical |
| Battery Lifespan | Five years in normal operation with good signal strength (no dropped messages) |
| Operating Temperature | -10°C to +55°C |
| Maximum Relative Humidity (non-condensing) | 95% |
| IP Rating | IP 65 |
| Standards and approvals | EN54-18, EN54-25 |
| Dimensions | 136 mm diameter x 96 mm height x 57mm depth |
| Weight (including base and batteries) | 270 g |
| Digital Communication | Apollo protocol compatibility is handled via the Loop-Interface device, RW1700-030APO. |
