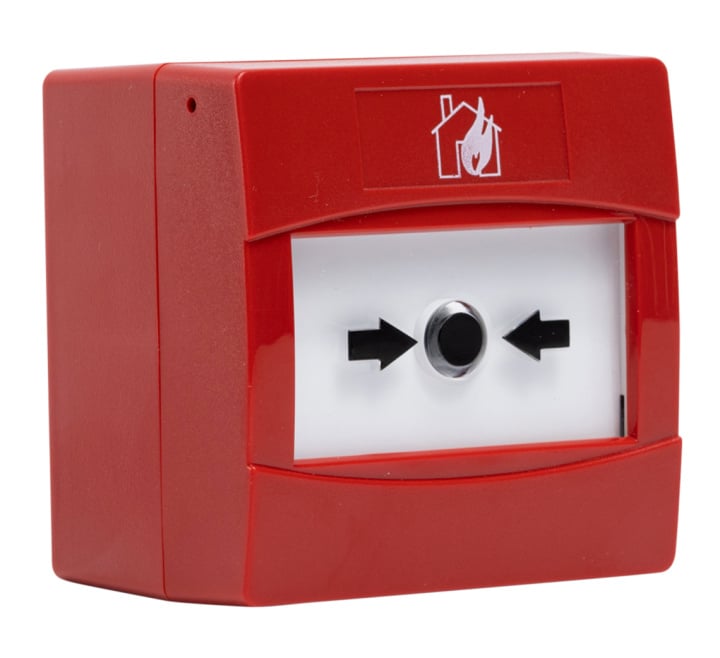

Apollo REACH Wireless Manual Call Point (RW1900-901APO)
Limited Stock
Product Details for Apollo REACH Wireless Manual Call Point (RW1900-901APO)
The Apollo REACH RW1900-901APO is a wireless analogue addressable manual call point. The unit has a resettable plastic element, which displays a drop-down warning indicator when operated. A key is supplied with the MCP for reset and case opening. A transparent cover protects against accidental operation.
Operating Principles
The RW1900-901APO REACH Wireless Manual Call Point is a wall-mounted device that, when activated, initiates an alarm on the fire security system. After its use the call point unit can be simply reset with its proper key, making it immediately ready for reactivation.
Status LED
When one or more faults are present in the system they are shown on the LCD and the fault LED is switched on yellow. LCD is ON only when the tamper switch is not activated (cover open) regardless of the configuration of the translator tamper fault.
Device Addressing
Device addressing is handled by the REACH Wireless Loop-Interface device (RW1700-030APO).
Devices are soft-addressed automatically when pairing with the Loop Interface and can be changed manually. Hard-addressing using Apollo XPERT cards are not supported.
Communication
REACH Wireless Devices use ‘radio-frequency’ wireless communication to connect to the Loop-Interface.
The Loop-Interface (RW1700-030APO) translates the wireless communication into wired Apollo protocol communication, with each device addressable individually by the fire panel. See datasheets for the Loop-Interface for more information.
Tamper detection
REACH Wireless devices contain an anti-tamper mechanism. In the event of removal from its base, it sends a tamper
detection message to the Loop-Interface.
Tampering detection is not signalled visually by the device LED.
Key Features of the RW1900-901APO |
|---|
|
> Resettable Element
> Bi-directional wireless communication > Dual channel redundancy > 10 year battery life > 5 year product warranty |
| Brand | Apollo Fire Detectors |
|---|---|
| Manufacturer Part No. | RW1900-901APO |
| Primary Power Source | Longlife Batteries (Lithium) |
| System Type | Wireless |
| Protocol Compatibility | Apollo XP95, Apollo Discovery, Apollo CoreProtocol |
| Warranty | 5 Years |
FAQ’s for Apollo REACH Wireless Manual Call Point (RW1900-901APO)
Product Specification for Apollo REACH Wireless Manual Call Point (RW1900-901APO)
| Part No | RW1900-901APO |
| Communication Range between Loop-Interface and Devices | 100m (in open space) |
| Field Device Radio Frequency Channel Pairs | 22 pairs |
| Radiated Power | 14 dBm (25 mW) |
| Battery Type | 2x VARTA CR123A Lithium 3 V, 1250mAh typical |
| Battery Lifespan | 10 years in normal operation with good signal strength (no dropped messages) |
| Operating Temperature | -10°C to +55°C |
| Maximum Relative Humidity (non-condensing) | 95% |
| IP Rating | IP30 |
| Standards and approvals | EN54-11, EN54-25 |
| Dimensions | 88 mm diameter x 87 mm height x 61 mm depth |
| Weight (including base and batteries) | 160 g |
| Digital Communication | Apollo protocol compatibility is handled via the Loop-Interface device, RW1700-030APO. |
