Apollo REACH Wireless Radio Survey Kit Lite (RW1800-060APO)
SKU
RW1800-060APO
£299.20
£249.33
Apollo REACH Wireless Radio Survey Kit Lite (RW1800-060APO)
Limited Stock
Product Details for Apollo REACH Wireless Radio Survey Kit Lite (RW1800-060APO)
The Apollo REACH RW1800-060APO is a portable, battery-powered toolkit for surveying signal strength of the REACH Wireless system, ahead of installation into a building.
The field-device can be held in position to test the signal strength of a potential installation location between it and the network host device. The field-device will indicate signal strength by flashing its on-board LED.
Communication
REACH Wireless Devices use ‘radio-frequency’ wireless communication to connect to the Loop-Interface.
The Loop-Interface (RW1700-030APO) translates the wireless communication into wired Apollo protocol communication, with each device addressable individually by the fire panel.
See datasheets for the Loop-Interface for more information.
Key Features of the RW1800-060APO |
|---|
|

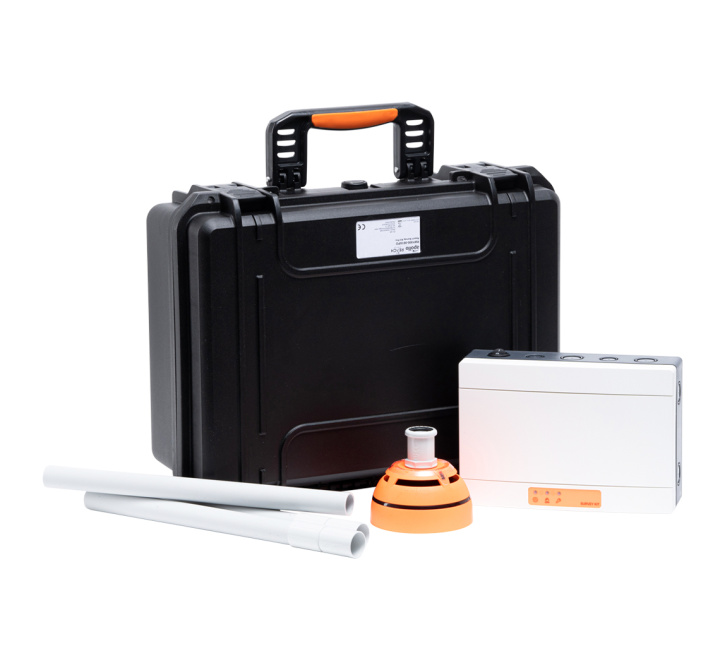

> Includes 1x network host device, 1x field-device, 1x extendable detector mounting pole
> Field-device includes an RGB LED for signal strength indication > Bi-directional wireless communication > Dual channel redundancy |
| Brand | Apollo Fire Detectors |
|---|---|
| Manufacturer Part No. | RW1800-060APO |
| Primary Power Source | Longlife Batteries (Lithium) |
| System Type | Wireless |
| Colour | White |
| Warranty | 5 Years |
Write Your Own Review
FAQ’s for Apollo REACH Wireless Radio Survey Kit Lite (RW1800-060APO)
No questions yet. Be the first to ask the question!
Product Specification for Apollo REACH Wireless Radio Survey Kit Lite (RW1800-060APO)
| Part No | RW1800-060APO |
| Field Device Radio Frequency Channel Pairs | 22 pairs |
| Radiated Power | 14 dBm (25 mW) |
| Battery Type (Field-Device) | 2 x VARTA CR123A Lithium 3 V, 1250mAh typical |
| Battery Type (Network Host Device) | 4 x VARTA CR123A Lithium 3 V, 1250mAh typical |
| Operating Temperature | -10°C to +55°C |
| Maximum Relative Humidity (non-condensing) | 95% |
| Standards and approvals | EN54-25 |
| Dimensions | 136 mm diameter x 96 mm height x 57mm depth |
| Weight (including base and batteries) | 270 g |
| Digital Communication | N/A |
