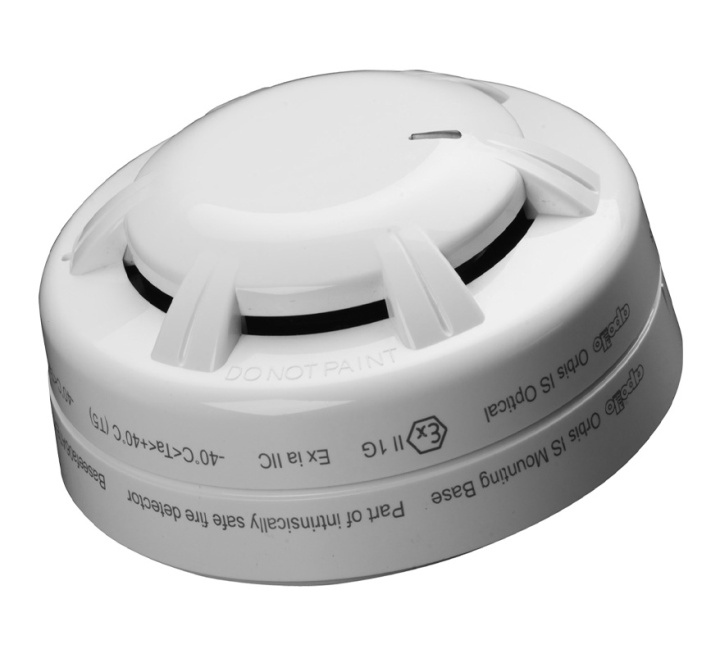

Apollo Orbis I.S. Optical Smoke Detector with Flashing LED (ORB-OP-52028-APO)
SKU
ORB-OP-52028-APO
£83.78
£69.82
Apollo Orbis I.S. Optical Smoke Detector with Flashing LED (ORB-OP-52028-APO)
In Stock
Product Details for Apollo Orbis I.S. Optical Smoke Detector with Flashing LED (ORB-OP-52028-APO)
The Apollo Orbis Intrinsically Safe (I.S.) Optical Smoke Detector works using the light scatter principle and is ideal for applications where slow-burning or smouldering fires are likely.
The sensing technology in the Orbis I.S. Optical Smoke Detector is significantly different in design from previous optical smoke detectors.
The integral LED on this variant flashes when in quiescent state.
Key Features of the ORB-OP-52028-APO |
|---|
|
> Reduces false alarms
> Recommended for early warning of fire in most areas > Improved sensitivity to black smoke > Compensation for slow changes in sensitivity > Algorithms for reliability of alarm > The integral LED on this variant flashes when in quiescent state |
| Brand | Apollo Fire Detectors |
|---|---|
| Manufacturer Part No. | ORB-OP-52028-APO |
| Primary Power Source | 24V DC |
| System Type | Conventional |
| Sensor Type | Optical |
| Detectable Medium | Smoke |
| Warranty | 10 Years |
Write Your Own Review
FAQ’s for Apollo Orbis I.S. Optical Smoke Detector with Flashing LED (ORB-OP-52028-APO)
No questions yet. Be the first to ask the question!
Product Specification for Apollo Orbis I.S. Optical Smoke Detector with Flashing LED (ORB-OP-52028-APO)
| Product code: | ORB-OP-52028-APO |
| Description: | Apollo Orbis I.S. Optical Smoke Detector - Flashing LED |
| Dimensions: | Diameter:100mm x D:42mm |
| Applications: | Dusty environments, Escape routes, Hazardous areas, Offshore platforms, Refineries, Small to medium buildings |
| Colour: | White |
| Materials housing: | Polycarbonate |
| Sensor configuration: | Chamber with surface-mount infrared emmiter and prism. Solid state integrated photo-diode and amplifier |
| Detection principle: | Photo-electric light scattering |
| Chamber type: | Chevron |
| Approvals: | BV, LR, LPCB, IECEx, FG, DNV.GL, BASEEFA, BOSEC, CCS, CPR, PESO (CCoE), ABS, MED |
| Max. power-up time: | <20 seconds |
| Min. 'detector active' voltage: | 12V |
| Holding voltage (min): | 5V |
| Min. voltage to light alarm LED: | 6V |
| Alarm: | Reset voltage: <1V Reset time: 1s Load: 325Ω in series with a 1.0V drop |
| Quiescent current: | 85μA (tested @ 24V dc) |
| Polarity: | L1 & L2 are polarity sensitive |
| Sampling frequency: | Once every 4 seconds |
| Humidity: | 0 - 98% |
| IP Rating: | IP23D |
| Storage temperature: | -40 to 70°C |
| Warranty: | 10 year |
| Weight: | 75g |
