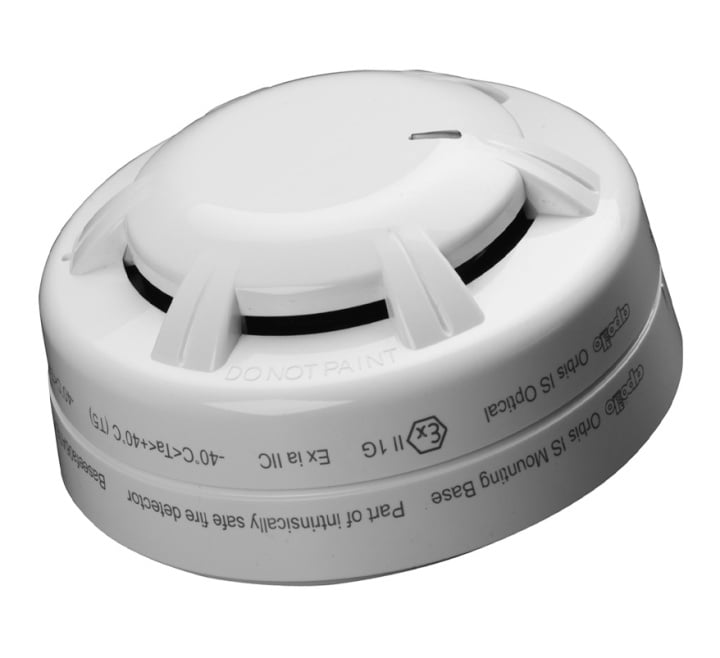

Apollo Orbis I.S. Optical Smoke Detector (ORB-OP-52027-APO)
SKU
ORB-OP-52027-APO
£82.51
£68.76
Apollo Orbis I.S. Optical Smoke Detector (ORB-OP-52027-APO)
In Stock
Product Details for Apollo Orbis I.S. Optical Smoke Detector (ORB-OP-52027-APO)
The Apollo Orbis Intrinsically Safe (I.S.) Optical Smoke Detector works using the light scatter principle and is ideal for applications where slow-burning or smouldering fires are likely.
The sensing technology in the Orbis I.S. Optical Smoke Detector is significantly different in design from previous optical smoke detectors.
Key Features of the ORB-OP-52027-APO |
|---|
|
> Reduces false alarms
> Recommended for early warning of fire in most areas > Improved sensitivity to black smoke > Compensation for slow changes in sensitivity > Algorithms for reliability of alarm |
| Brand | Apollo Fire Detectors |
|---|---|
| Manufacturer Part No. | ORB-OP-52027-APO |
| Primary Power Source | 24V DC |
| System Type | Conventional |
| Sensor Type | Optical |
| Detectable Medium | Smoke |
| Colour | White |
| Warranty | 10 Years |
Write Your Own Review
FAQ’s for Apollo Orbis I.S. Optical Smoke Detector (ORB-OP-52027-APO)
No questions yet. Be the first to ask the question!
Product Specification for Apollo Orbis I.S. Optical Smoke Detector (ORB-OP-52027-APO)
| Product code: | ORB-OP-52027-APO |
| Description: | Apollo Orbis I.S. Optical Smoke Detector |
| Dimensions: | Diameter: 100mm x L:42mm |
| Applications: | Dusty environments, Escape routes, Hazardous areas, Offshore platforms, Refineries, Small to medium buildings |
| Fire type: | Slow burning, smouldering fires |
| Sensor configuration: | Chamber with surface-mount infrared emmiter and prism. Solid state integrated photo-diode and amplifier |
| Detection principle: | Photo-electric light scattering |
| Colour: | White |
| Materials housing: | Polycarbonate |
| Approvals: | BV, LR, LPCB, IECEx, FG, DNV.GL, BASEEFA, BOSEC, CCS, VdS, CPR, PESO (CCoE), ABS, MED |
| Chamber type: | Chevron |
| Max. power-up time: | <20 seconds |
| Quiescent current: | 85μA (tested @ 24V dc) |
| Polarity: | L1 & L2 are polarity sensitive |
| Sampling frequency: | Once every 4 seconds |
| Min. 'detector active' voltage: | 12V |
| Holding voltage (min): | 5V |
| Min. voltage to light alarm LED: | 6V |
| Alarm: | Reset voltage: <1V Reset time: 1s Load: 325Ω in series with a 1.0V drop |
| Humidity: | 0 - 98% (no condensation or icing) |
| Operating temperature: | -40 to 70°C |
| IP Rating: | IP23D |
| Warranty: | 10 year |
| Weight: | 75g |
