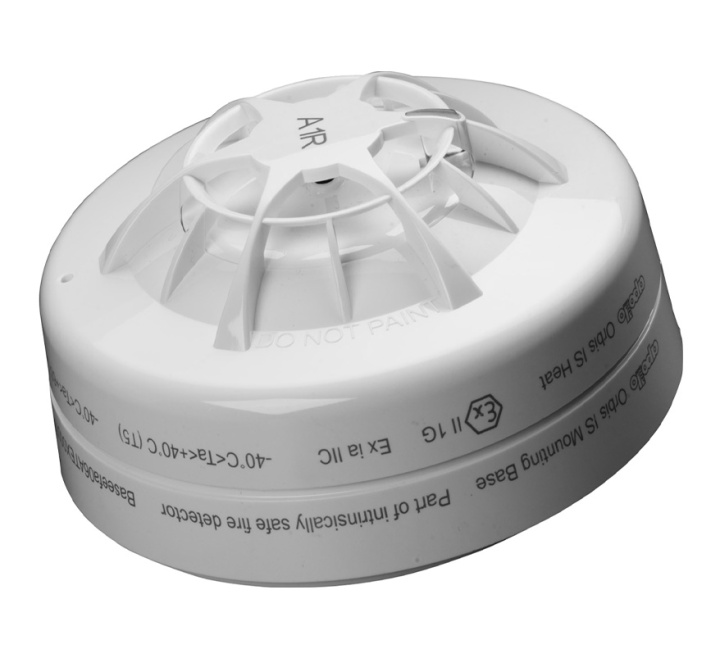

Apollo Orbis I.S. A1R Heat Detector with Flashing LED (ORB-HT-51146-APO)
SKU
ORB-HT-51146-APO
£77.02
£64.18
Apollo Orbis I.S. A1R Heat Detector with Flashing LED (ORB-HT-51146-APO)
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for Apollo Orbis I.S. A1R Heat Detector with Flashing LED (ORB-HT-51146-APO)
The Apollo Orbis I.S. Heat Detector (A1R) monitors temperature by using a single thermistor network which provides a voltage output proportional to the external air temperature. The integral LED on this variant flashes when in quiescent state.
Key Features of the ORB-HT-51146-APO |
|---|
|
> A1R heat detector
> Can be used for applications where smoke detectors are unsuitable > Ideal for environments that are dirty or smoky under normal conditions > Reduced incidences of false alarms > Increased reliability of detection > Integral LED on this variant flashes when in quiescent state |
| Brand | Apollo Fire Detectors |
|---|---|
| Manufacturer Part No. | ORB-HT-51146-APO |
| Primary Power Source | 24V DC |
| System Type | Conventional |
| Sensor Type | Thermistor |
| Detectable Medium | Heat |
| Warranty | 10 Years |
Write Your Own Review
FAQ’s for Apollo Orbis I.S. A1R Heat Detector with Flashing LED (ORB-HT-51146-APO)
No questions yet. Be the first to ask the question!
Product Specification for Apollo Orbis I.S. A1R Heat Detector with Flashing LED (ORB-HT-51146-APO)
| Product code: | ORB-HT-51146-APO |
| Description: | Apollo Orbis I.S. Heat Detector (A1R) - Flashing LED |
| Dimensions: | Diameter:100mm x L:42mm |
| Applications: | Dusty environments, Hazardous areas, Offshore platforms, Refineries, Small to medium buildings |
| Heat classification: | A1R |
| Colour: | White |
| Materials housing: | Polycarbonate |
| Detection principle: | Temperature sensitive resistance |
| Approvals: | BV, LR, LPCB, IECEx, DNV.GL, BASEEFA, BOSEC, CCS, CPR, PESO (CCoE), ABS, MED |
| Max. power-up time: | <20 seconds |
| Min. 'detector active' voltage: | 12V |
| Holding voltage (min): | 5V |
| Min. voltage to light alarm LED: | 6V |
| Alarm: | Reset voltage: <1V Reset time: 1s Load: 325Ω in series with a 1.0V drop |
| Quiescent current: | 80μA (tested @ 24V dc) |
| Polarity: | L1 & L2 are polarity sensitive |
| Sampling frequency: | Once every 2 seconds |
| Humidity: | 0 - 98% (no condensation or icing) |
| IP Rating: | IP23D |
| Storage temperature: | -40 to 70°C |
| Warranty: | 10 year |
| Weight: | 70g |
