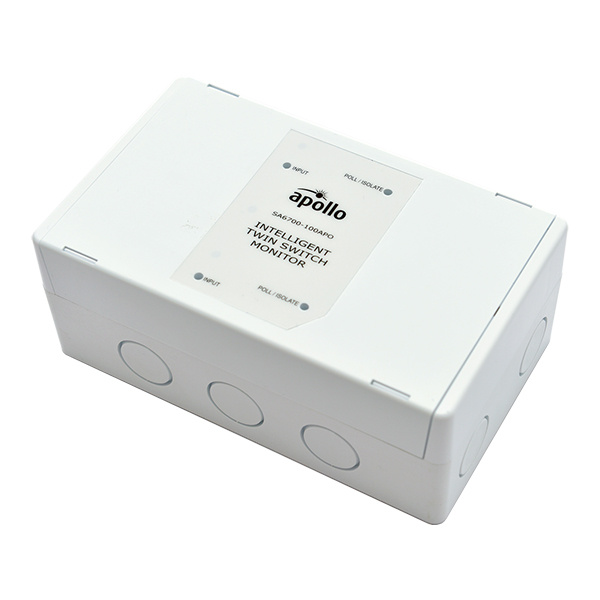

Apollo Intelligent Twin Switch Monitor (SA6700-100APO)
In Stock
Product Details for Apollo Intelligent Twin Switch Monitor (SA6700-100APO)
The Apollo Intelligent Twin Switch Monitor provides the function of two Switch Monitor units within one enclosure. The two units are electrically independent of each other. There is a DIL switch on each unit to set the address.
Both Switch Monitor units in the enclosure are designed to monitor the state of one or more single pole, volt-free contacts connected on a single pair of cables to report the status. It has a selectable status reporting delay making it suitable for monitoring flow switches.
Mechanical Construction
The Intelligent Twin Switch Monitor is available in the new faceplate style enclosure. This can be mounted with the supplied back-box for surface mounting or flush mounted using a UK double gang, flush mounting back-box of minimum depth 30mm.
Key Features of the SA6700-100APO |
|---|
|
> Improved design for ease of wiring meaning faster installation
> Contains controllable isolator > Address range 1 - 254 > Five pre-configured modes, including compatibility mode from XP95/Discovery to CoreProtocol systems > Priority mode for first response > Configurable input styles > Earth fault monitoring |
| Brand | Apollo Fire Detectors |
|---|---|
| Manufacturer Part No. | SA6700-100APO |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Apollo XP95, Apollo Discovery, Apollo CoreProtocol |
| Colour | White |
| Warranty | 10 Years |
FAQ’s for Apollo Intelligent Twin Switch Monitor (SA6700-100APO)
Product Specification for Apollo Intelligent Twin Switch Monitor (SA6700-100APO)
| Code: | SA6700-100APO |
| Description: | Apollo Intelligent Switch Monitor Module (Twin) |
| Dimensions: | W:150mm x L:60mm x D:90mm |
| Colour: | White |
| Standards: | EN54-17, EN54-18 |
| Approvals: | SBSC, FG, LPCB, BOSEC, VdS, CPR |
| Protocol voltage: | 5V - 13V peak to peak |
| Power-up surge current: | 0.9mA |
| Quiescent current: | 500μA (tested at 24V dc) |
| Supply voltage: | 17 - 35V dc |
| Humidity: | 0 - 95% (no condensation or icing) |
| Operating temperature: | -40 to 70°C |
| IP Rating: | IP52 |
| Warranty: | 10 year |
| Weight: | 273g |
