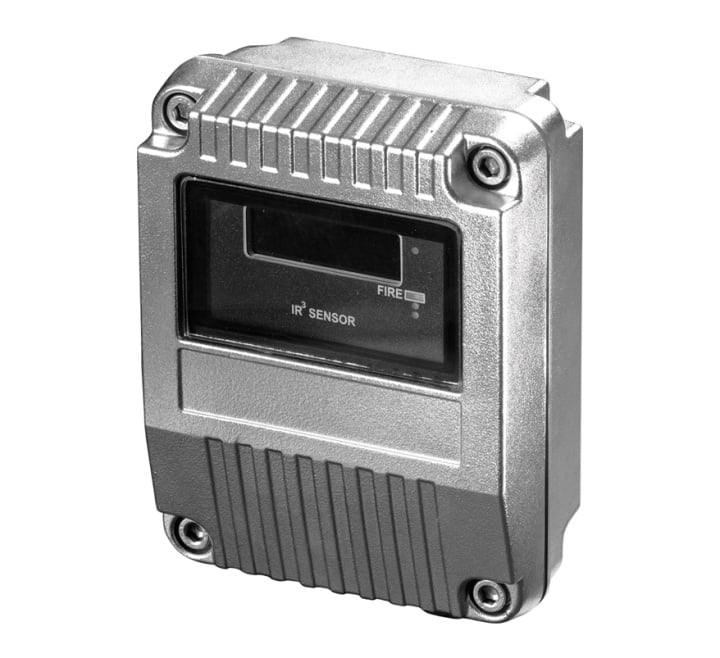

Apollo Intelligent Marine IR3 Flame Detector - Stainless Steel (55000-034MAR)
Unavailable
Product Details for Apollo Intelligent Marine IR3 Flame Detector - Stainless Steel (55000-034MAR)
The Apollo Marine Intelligent Stainless Steel IR³ Flame Detector is designed to protect areas where open flaming fires may be expected.
Operation
The Marine Intelligent IR³ Flame Detector is sensitive to lowfrequency, flickering infra-red (IR) radiation emitted by flames during combustion. Since it responds to flickering radiation the IR³ Flame Detector can operate even if the lens is contaminated by a layer of oil, dust, water-vapour or ice.
The Marine Intelligent IR³ Flame Detector is set to respond to low-frequency radiation at 1 to 15 Hz (1 to 2.7 �m) in order to detect all flickering flames including those invisible to the naked eye, e.g. those emitted by hydrogen fires.
This detector has a heavy duty, stainless steel housing which is highly resistant to corrosion. The housing has been electro-polished to give a natural silver finish and has no need to be painted, making it ideal for marine applications.
Key Features of the 55000-034MAR |
|---|
|
> Heavy duty stainless steel housing
|
| Brand | Apollo Fire Detectors |
|---|---|
| Manufacturer Part No. | 55000-034MAR |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Apollo XP95, Apollo Discovery, Apollo CoreProtocol |
| Sensor Type | Triple Infrared (IR³) |
| Detectable Medium | Flame |
| Colour | Stainless Steel |
| Warranty | 3 Years |
FAQ’s for Apollo Intelligent Marine IR3 Flame Detector - Stainless Steel (55000-034MAR)
Product Specification for Apollo Intelligent Marine IR3 Flame Detector - Stainless Steel (55000-034MAR)
| Product code: | 55000-034MAR |
| Description: | Apollo Intelligent Marine IR3 Flame Detector - Stainless Steel |
| Dimensions: | W:108mm x L:75mm x D:142mm |
| Cable gland entries: | 2 x 20mm |
| Range of view @ 25m: | 0.1m² n-heptane |
| Range of view @ 35m: | 0.2m² n-heptane |
| Range of view @ 45m: | 0.4m² n-heptane |
| Spectral response - IR: | 1 to 2.7μm |
| Field of view: | 90° |
| Sensitivity: | High-Class 1 Low-Class 3 |
| Max. power-up time: | 4 seconds |
| Quiescent current: | 2200μA |
| Supply voltage: | 17 to 28V dc |
| Humidity: | 0 - 95% (no condensation or icing) |
| Operating temperature: | -10 to 55°C |
| Storage temperature: | -20 to 65°C |
| IP Rating: | IP66 |
| Warranty: | 3 year |
| Weight: | 2.1kg |
