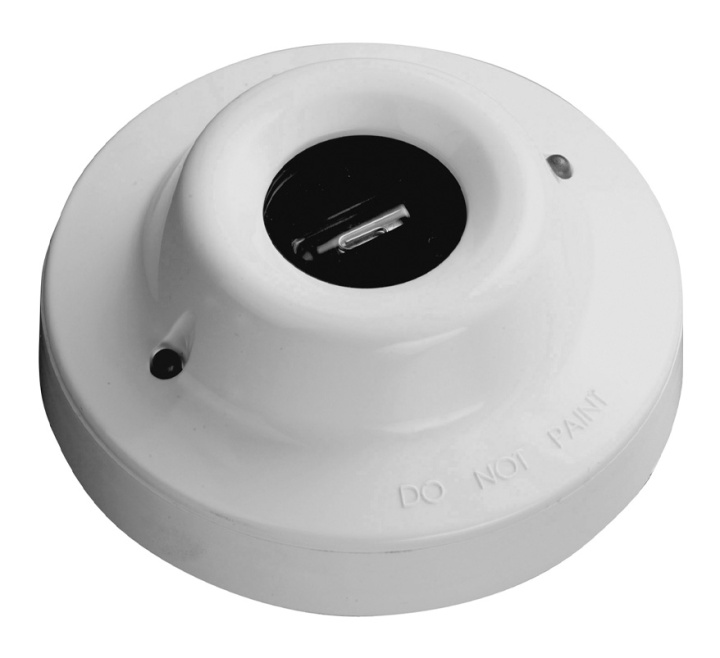

Apollo Intelligent Marine Base Mounted UV/IR² Flame Detector (55000-028MAR)
SKU
55000-028MAR
£1,200.46
£1,000.38
Apollo Intelligent Marine Base Mounted UV/IR² Flame Detector (55000-028MAR)
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for Apollo Intelligent Marine Base Mounted UV/IR² Flame Detector (55000-028MAR)
The Marine Intelligent Base Mounted Ultra-Violet (UV) Dual InfraRed (IR2) Flame Detectors are designed to protect indoor areas where open fires may be expected.
The Marine Intelligent Base Mounted UV/IR2 Flame Detector is sensitive to UV and low-frequency, flickering IR radiation emitted by flames during combustion. Since it requires both UV and IR radiation the detector can operate in applications where a basic single UV or single IR detector would be inappropriate.
Key Features of the 55000-028MAR |
|---|
|
> Responds to stationary flames with no flicker
> Sensitive to low-frequency flickering IR radiation emitted by flames during combustion > Compact flame detector which fits into Discovery Marine bases > Loop-powered > False alarms due to factors such as flickering sunlight are avoided by a combination of filters and signal-processing techniques > Suitable for marine applications |
| Brand | Apollo Fire Detectors |
|---|---|
| Manufacturer Part No. | 55000-028MAR |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Apollo XP95, Apollo Discovery, Apollo CoreProtocol |
| Sensor Type | Ultraviolet/Infrared (UV/IR) |
| Detectable Medium | Flame |
| Warranty | 3 Years |
Write Your Own Review
FAQ’s for Apollo Intelligent Marine Base Mounted UV/IR² Flame Detector (55000-028MAR)
No questions yet. Be the first to ask the question!
Product Specification for Apollo Intelligent Marine Base Mounted UV/IR² Flame Detector (55000-028MAR)
| Product code: | 55000-028MAR |
| Description: | Apollo Intelligent Marine Base Mounted UV/IR² Flame Detector |
| Dimensions: | Diameter:100mm x D:40mm |
| Colour: | White |
| Standards / Approvals: | EN54-10 / LR |
| Sensing window: | Material: Quartz Window thickness: 2mm |
| Materials: | Housing: Polycarbonate Terminals: Nickel plated stainless steel |
| Range of view @ 25m: | 0.1m² n-heptane |
| Field of view: | 90° |
| Spectral response IR: | 0.75 to 2.7μm |
| Sensitivity: | High-Class 1 Low-Class 3 |
| Chamber type: | Chevron |
| Quiescent current: | 2500μA |
| Protocol voltage: | 5 to 9V peak to peak |
| Power-up surge current: | 9mA |
| Max. power-up time: | 4 seconds |
| Supply voltage: | 17 to 28V dc |
| Humidity: | 0 - 95% (no condensation or icing) |
| Operating temperature: | -40 to 70°C |
| Storage temperature: | -40 to 70°C |
| IP Rating: | IP66 |
| Warranty: | 3 year |
| Weight: | 150g |
