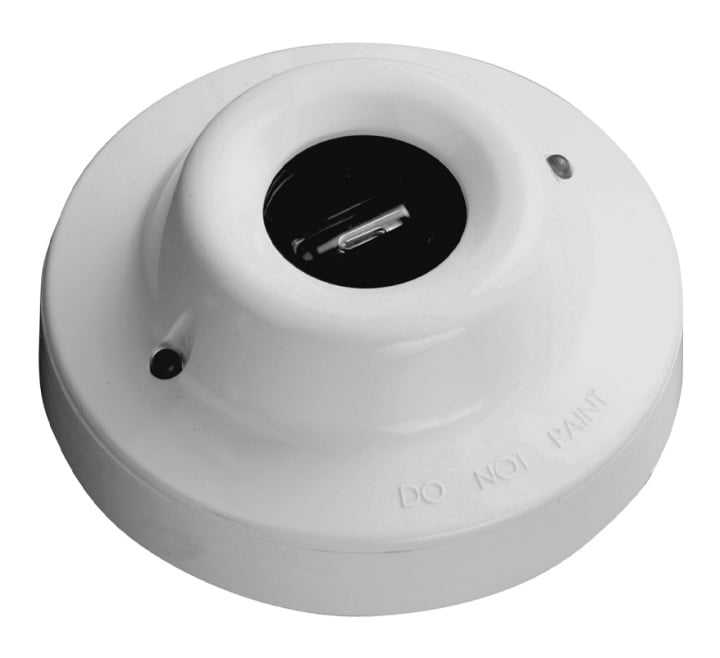

Apollo Intelligent Marine Base Mounted UV Flame Detector (55000-027MAR)
SKU
55000-027MAR
£1,007.30
£839.42
Apollo Intelligent Marine Base Mounted UV Flame Detector (55000-027MAR)
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for Apollo Intelligent Marine Base Mounted UV Flame Detector (55000-027MAR)
The Apollo Marine Intelligent Ultra-Violet (UV) Base Mounted Flame Detectors are designed to protect indoor areas where open fires may be expected.
The Marine Intelligent UV Base Mounted Flame Detector is sensitive to ultraviolet (UV) radiation emitted by flames during combustion. Since it requires only UV radiation the detector responds even to stationary flames with no flicker such as cigarette lighters and blue gas flames.
Key Features of the 55000-027MAR |
|---|
|
> Responds to stationary flames with no flicker
> Sensitive to UV radiation emitted by flames during combustion > Compact flame detector which fits into Discovery Marine bases > Loop-powered |
| Brand | Apollo Fire Detectors |
|---|---|
| Manufacturer Part No. | 55000-027MAR |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Apollo XP95, Apollo Discovery, Apollo CoreProtocol |
| Sensor Type | Ultraviolet (UV) |
| Detectable Medium | Flame |
| Warranty | 3 Years |
Write Your Own Review
FAQ’s for Apollo Intelligent Marine Base Mounted UV Flame Detector (55000-027MAR)
No questions yet. Be the first to ask the question!
Product Specification for Apollo Intelligent Marine Base Mounted UV Flame Detector (55000-027MAR)
| Product code: | 55000-027MAR |
| Description: | Apollo Intelligent Marine Base Mounted UV Flame Detector |
| Dimensions: | Diameter:100mm x D:40mm |
| Sensing window: | Material: Quartz Thickness: 2mm |
| Colour: | White |
| Materials: | Housing: Polycarbonate Terminals: Nickel plated stainless steel |
| Standards / Approvals: | EN54-10 / LR, CCS |
| Range of view @ 25m: | 0.1m² n-heptane |
| Field of view: | 90° |
| Sensitivity: | High-Class 1 Low-Class 3 |
| Chamber type: | Chevron |
| Protocol voltage: | 5 to 9V peak to peak |
| Power-up surge current: | 9mA |
| Max. power-up time: | 4 seconds |
| Quiescent current: | 2300μA |
| Supply voltage: | 17 to 28V dc |
| Humidity: | 0 - 95% (no condensation or icing) |
| Operating temperature: | -40 to 70°C |
| Storage temperature: | -40 to 70°C |
| IP Rating: | IP66 |
| Warranty: | 3 year |
| Weight: | 150g |
