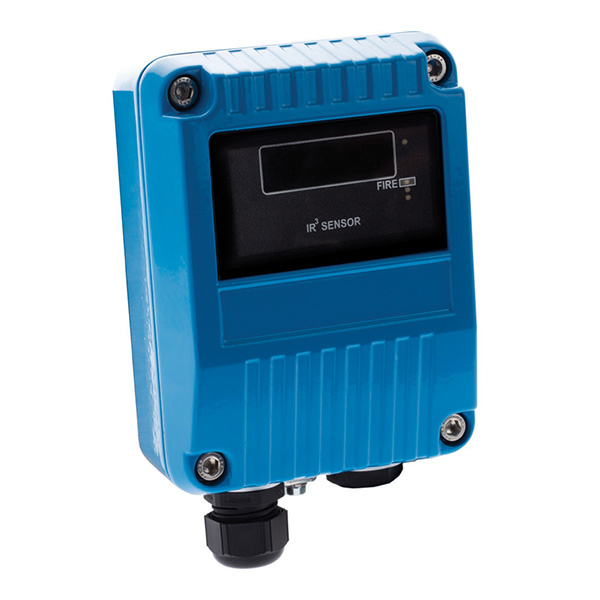

Apollo Intelligent IR³ Flame Detector (55000-020APO)
Product Details for Apollo Intelligent IR³ Flame Detector (55000-020APO)
Operation
The IR³ Flame Detector is sensitive to low-frequency, flickering infra-red radiation emitted by flames during combustion. Since it responds to flickering radiation the IR³ Flame Detector can operate even if the lens is contaminated by a layer of oil, dust, water-vapour or ice.
The Intelligent IR³ Flame Detector is set to respond to low-frequency radiation at 1 to 15Hz (1 to 2.7μm) in order to detect all flickering flames, including those invisible to the naked eye, eg, those emitted by hydrogen fires.
The Intelligent IR³ Flame Detector has three IR sensors that respond to different IR wavelengths in order to discriminate between flames and spurious sources of radiation. False alarms due to such factors as flickering sunlight are avoided by a combination of filters and signal processing techniques.
Electrical Description
The Intelligent IR³ Flame Detector is loop powered and needs no external supply. A remote LED alarm indicator may be connected to the flame detector.
Application
Flame detectors are used when detection is required to be unaffected by convection currents, draughts or wind; tolerant of fumes, vapours, steam, dust and mist; responsive to a flame more than 25m away and fast reacting.
Device Addressing
Before installing the flame detector, it is necessary to set the address using the DIL switch, which is accessed by removing the front cover, using a 5mm hexagonal key. 7 segments of the switch are set to 0 or 1, using a small screwdriver or similar tool.
A complete list of address settings is shown in the Installation Guide (PP2271).
Backward Compatibility
The Intelligent IR³ Flame Detector operates only with control equipment using the Apollo XP95 or Discovery digital protocol (or any development of it).
Watch the Video
Key Features of the 55000-020APO |
|---|
|
> Loop-powered
> Sensitive to flickering IR radiation > Detects through films of oil, dust, water and ice > Responds to flickering flames, including those invisible to the naked eye > False alarms due to lighting or flickering sunlight are minimised > Compatible with Discovery and XP95 protocols |
| Brand | Apollo Fire Detectors |
|---|---|
| Manufacturer Part No. | 55000-020APO |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Apollo XP95, Apollo Discovery, Apollo CoreProtocol |
| Sensor Type | Triple Infrared (IR³) |
| Detectable Medium | Flame |
| Colour | Blue |
| Warranty | 10 Years |
FAQ’s for Apollo Intelligent IR³ Flame Detector (55000-020APO)
Product Specification for Apollo Intelligent IR³ Flame Detector (55000-020APO)
| Product code: | 55000-020APO |
| Description: | Apollo XP95 Flame Detector (IR3) |
| Dimensions: | W:108mm x L:142mm x D:82mm |
| Materials: | Die-cast zinc alloy |
| Colour: | Blue |
| Approvals: | CPR, LPCB |
| Operating temperature: | -10ºC to +55ºC |
| Storage temperature: | -20ºC to +65ºC |
| Relative humidity: | 0 - 95% no condensation or icing |
| Warranty: | 3 year |
| Weight: | 2kg |
