Apollo Intelligent DIN-Rail Input / Output Unit (SA4700-302APO)
SKU
SA4700-302APO
£55.78
£46.48

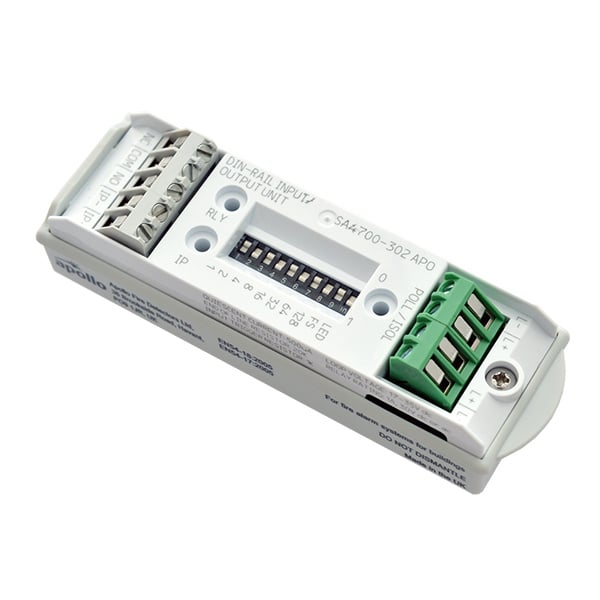

Apollo Intelligent DIN-Rail Input / Output Unit - SA4700-302APO
In Stock
Product Details for Apollo Intelligent DIN-Rail Input / Output Unit (SA4700-302APO)
The Apollo Intelligent DIN-Rail Input/Output Unit provides supervision of one or more normally open volt free contacts connected to a single pair of cables and a set of changeover relay output contacts.
Compatible with XP95, Discovery and CoreProtocol digital communication protocols.
Mechanical Construction
The Intelligent DIN-Rail Input/Output Unit is designed to be mounted on a 35 mm width DIN-Rail inside an enclosure.
Key Features of the SA4700-302APO |
|---|
|
> Improved design for ease of wiring meaning faster installation
> Contains controllable isolator > (CoreProtocol enabled systems feature only) > Address range 1 - 254 > (CoreProtocol enabled systems feature only) > Nine pre-configured modes, including compatibility mode from XP95/Discovery to CoreProtocol systems * > Failsafe mode (meets BS 7273-4 requirements) > Configurable input styles > (CoreProtocol enabled systems feature only) > Earth fault monitoring > (CoreProtocol enabled systems feature only) |
| Brand | Apollo Fire Detectors |
|---|---|
| Manufacturer Part No. | SA4700-302APO |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Apollo XP95, Apollo Discovery, Apollo CoreProtocol |
| Warranty | 10 Years |
Write Your Own Review
FAQ’s for Apollo Intelligent DIN-Rail Input / Output Unit (SA4700-302APO)
No questions yet. Be the first to ask the question!
Product Specification for Apollo Intelligent DIN-Rail Input / Output Unit (SA4700-302APO)
| Product code: | SA4700-302APO |
| Description: | Apollo Intelligent DIN-Rail Input/Output Module |
| Dimensions: | W:102mm x L:33mm x D:33mm |
| Colour: |
White |
| Relay output contact rating: | 1A (tested @ 30V ac) |
| Standards: | EN54-17, EN54-18 |
| Approvals: | SBSC, FG, LPCB, BOSEC, VdS, CPR |
| Protocol voltage: | 5V - 13V peak to peak |
| Quiescent current: | 500μA (tested at 24V dc) |
| Supply voltage: | 17 - 35V dc |
| Humidity: | 0 - 95% (no condensation or icing) |
| Operating temperature: | -40 to 70°C |
| Warranty: | 10 year |
| Weight: | 49g |
