Apollo Intelligent Auto-Aligning Beam Detector Head (Add-on - No Controller) (29650-070)
SKU
29650-070
£657.44
£547.87
Apollo Intelligent Auto-Aligning Beam Detector Head (Add-on - No Controller) (29650-070)
Available on Backorder
This item is not currently in stock, but it is available to backorder. Contact us for lead time.
Product Details for Apollo Intelligent Auto-Aligning Beam Detector Head (Add-on - No Controller) (29650-070)

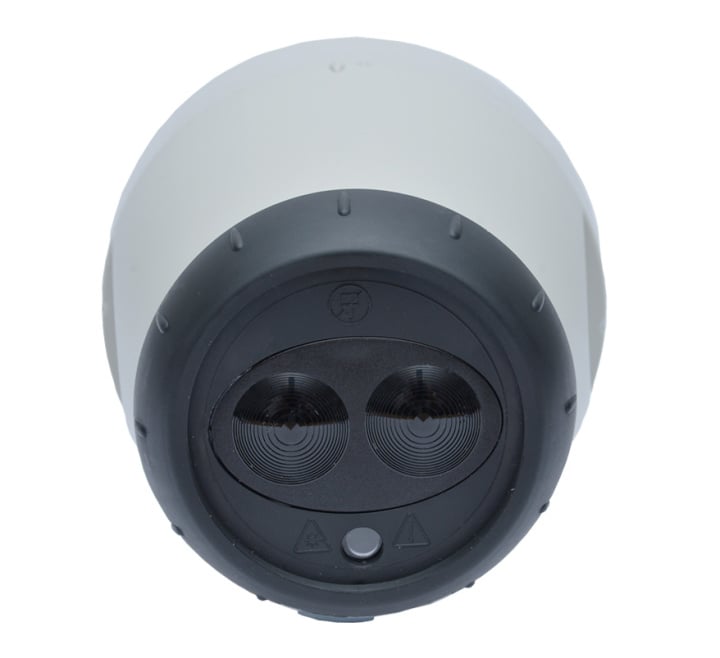

The Apollo 29650-070 is an additional detector head for the Intelligent Auto-Aligning Beam Detector.
Key Features of the 29650-070 |
|---|
|
> Add-on for auto-aligning beam detector
> Each detector adjusts from eight to 100 metres > Laser assisted alignment for quick installation > Automatic compensation for building movement > Contamination Compensation |
| Brand | Apollo Fire Detectors |
|---|---|
| Manufacturer Part No. | 29650-070 |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Apollo XP95, Apollo Discovery, Apollo CoreProtocol |
| Sensor Type | IR Optical Beam |
| Detectable Medium | Smoke |
| Warranty | 10 Years |
Write Your Own Review
FAQ’s for Apollo Intelligent Auto-Aligning Beam Detector Head (Add-on - No Controller) (29650-070)
No questions yet. Be the first to ask the question!
Product Specification for Apollo Intelligent Auto-Aligning Beam Detector Head (Add-on - No Controller) (29650-070)
| Code: | 29650-070 |
| Description: | Apollo Reflective Beam Detector Head (Add-on) - Auto-Aligning |
| Dimensions: | Controller with base: W:202mm x H:230mm x D:87mm Detector with base: W:134mm x H:131mm x D:134mm Universal bracket: W:135mm x H:135mm x D:71mm Reflector: W:100mm x H:100mm x D:10mm |
| Colour: | Grey / Black |
| Housing material: | Polycarbonate |
| Standards: | EN54-12 |
| Approvals: | VdS, CPR |
| Contact rating: | 100mA @ 36V dc |
| Cable length: | 100m, 2-core (system controller to detector) |
| Response threshold: | Default 35%, Range 10 - 60% |
| Operating distance: | 8 - 100m |
| Optical wavelength: | 850nm |
| Delays (user settable): | Default 35% Alarm or fault: 2 - 30 seconds |
| Operating current: | 1 Detector head - 6mA 2 Detector heads - 8.5mA |
| Alignment mode current with 1 or 2 detector heads: | 37mA |
| Supply voltage: | 14 - 36V dc |
| Humidity: | 0 - 93% (no condensation or icing) |
| Operating temperature: | -10 to 55°C |
| IP Rating: | IP54 |
| Weight: | Controller with base: 1000g Detector with base: 500g Universal bracket: 200g Reflector: 100g |
| Note: All data is supplied subject to change without notice. Specifications are typical at 24 V, 25°C and 50% RH unless otherwise stated | |
