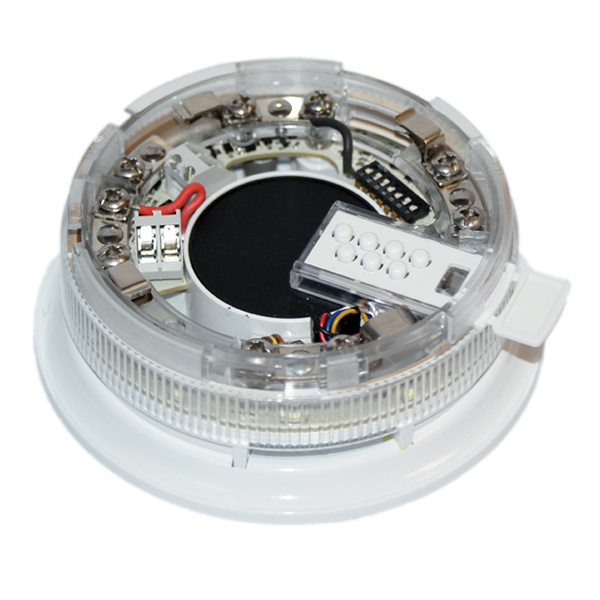

Apollo Discovery Sounder VAD Base with Isolator (45681-700APO)
SKU
45681-700APO
£78.58
£65.48
Apollo Discovery Sounder VAD Base with Isolator - 45681-700APO
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for Apollo Discovery Sounder VAD Base with Isolator (45681-700APO)
The Discovery Sounder VAD Base makes full use of the Discovery protocol. For ease of commissioning, a ‘Magnetic Wand’ can be used to test and adjust each sounder VAD locally.
Key Features of the 45681-700APO |
|---|
|
> EN 54-23 Certified Category O VAD
> 0.5Hz Flash Rate (white). > Volume control from the fire control panel > 15 pairs of tones > Built-in isolator > Unique acoustic and VAD self-test > EN 54-3 Certified Sounder |
| Brand | Apollo Fire Detectors |
|---|---|
| Manufacturer Part No. | 45681-700APO |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Apollo XP95, Apollo Discovery, Apollo CoreProtocol |
| Colour | White |
| Warranty | 10 Years |
Write Your Own Review
FAQ’s for Apollo Discovery Sounder VAD Base with Isolator (45681-700APO)
No questions yet. Be the first to ask the question!
Product Specification for Apollo Discovery Sounder VAD Base with Isolator (45681-700APO)
| Product code: | 45681-700APO |
| Description: | Apollo Discovery Sounder VAD Base Cat. O (White Flash) - Isolating |
| Selectable volume(s): | 60dB(A) 70dB(A) 74dB(A) 78dB(A) 82dB(A) 86dB(A) 90dB(A) |
| Dimensions: | Dia:100mm x L:38mm |
| Colour: | White |
| Standards: | EN54-3, EN54-17, EN54-23 |
| Approvals: | CPR, LPCB, VdS |
| Terminal functions: | +R: +R Remote indicator positive connection -R: -R Remote indicator negative connection |
| Polarity: | L1 & L2 are polarity sensitive |
| Protocol voltage: | 5V - 9V peak to peak |
| Max. power-up time: | <1 second |
| Quiescent current: | 500μA (tested @ 24V dc) |
| Humidity: | 0 - 95% (no condensation or icing) |
| Operating temperature: | -20 to 60°C |
| IP rating: | IP21D |
| Warranty: | 10 year |
| Weight: | 168g |
