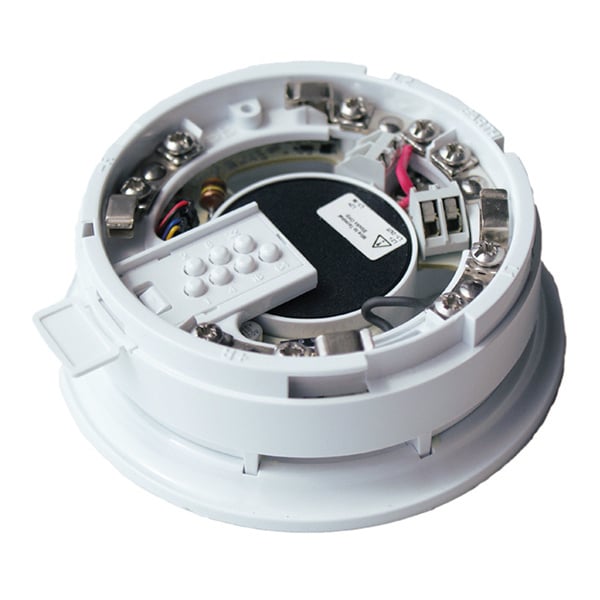

Apollo Discovery Sounder Base with Isolator (45681-702APO)
In Stock
Product Details for Apollo Discovery Sounder Base with Isolator (45681-702APO)
The Apollo Discovery Sounder Base with Isolator (45681-702APO) is a multifunctional device that incorporates a sounder, a short-circuit isolator within a Discovery mounting base. Allowing up to 15 different tone pairs to be used to signal evacuation and alert. A third selection can be used in instances such as a class change in Schools.
Operation
The Discovery Sounder Base with Isolator has identical functionality and sound output to the Discovery Sounder VAD base (Part Number 45681-700), but has no visual alarm capability.;
Being a multifunctional device, the 45681-702APO Apollo Discovery Sounder Base with Isolator, comprimses a mounting base for Discovery fire detectors, a sounder and a short-circuit isolator.
The 45681-702APO has multiple selectable output volumes, which can be controlled from the fire alarm panel making the device easy to use and functional.
Communication
Discovery, XP95 & CoreProtocol compatible
Watch the Video
Key Features of the 45681-702APO |
|---|
|
> 15 pairs of tones
> It is possible to set individual volume of the sounder from the fire control panel > Tones can be used for other purposes in addition to warning of fire, ideal for schools > Enables soft start option, ideal for hospitals and nursing homes > Unique acoustic and visual indicator self-test |
| Brand | Apollo Fire Detectors |
|---|---|
| Manufacturer Part No. | 45681-702APO |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Apollo XP95, Apollo Discovery, Apollo CoreProtocol |
| Warranty | 10 Years |
FAQ’s for Apollo Discovery Sounder Base with Isolator (45681-702APO)
Product Specification for Apollo Discovery Sounder Base with Isolator (45681-702APO)
| Product code: | 45681-702APO |
| Description: | Apollo Discovery Sounder Base - Isolating |
| Performance: | Tone(s): 15 |
| Dimensions: | Dia:115mm x L:38mm |
| Colour: | White |
| Standards: | EN54-3, EN54-17 |
| Approvals: | CPR, LPCB, VdS |
| Terminal functions: | L2: +L2 Loop in & out positive L1 in: -L1 in Loop (isolated) negative |
| Polarity: | L1 & L2 are polarity sensitive |
| Protocol voltage: | 5V - 9V peak to peak |
| Quiescent current: | 370μA (tested @ 24V dc) |
| Humidity: | 0 - 95% (no condensation or icing) |
| Operating temperature: | -20 to 60°C |
| IP rating: | IP21C |
| Warranty: | 10 year |
| Weight: | 140g |
