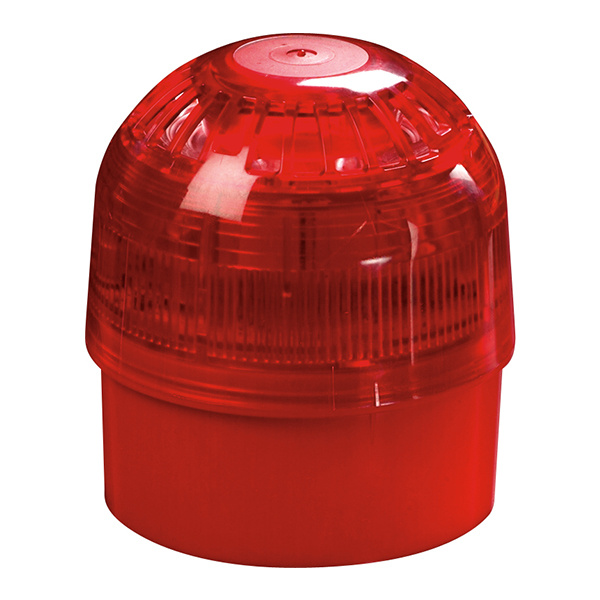

Apollo Discovery Open-Area Sounder Visual Indicator (Red) (58000-005APO)
In Stock
Product Details for Apollo Discovery Open-Area Sounder Visual Indicator (Red) (58000-005APO)
The Discovery Open-Area Sounder Visual Indicator makes full use of the Discovery protocol and has been designed for use in indoor and open areas. When the fire system is being commissioned a 'Magnetic Wand' can be used to adjust and test each sounder locally.
Application
The Discovery Open-Area Sounder Visual Indicator is used to provide audible and visual warning of fire and is controlled by the fire control panel by means of the Discovery or CoreProtocol.
The particular features of this sounder Visual Indicator are available when it is being controlled by the full Discovery or CoreProtocol with the fire control panel programmed accordingly. Information on available features should be requested from the panel manufacturer.
These are identical to the Discovery Sounder Visual Indicator Base but the Open-Area Sounder Visual Indicator is a wall-mounted stand-alone device that produces a higher sound output of up to 100dB(A).
Communication
Discovery, XP95 & CoreProtocol compatible
Watch the Video
Key Features of the 58000-005APO |
|---|
|
> 15 tone pairs
> Individual control of the sounder and visual indicator > Volume and tone settings can be selected from the control panel > Tones can be used for other purposes in addition to warning of fire, making the device ideal for use in schools etc. > Soft start option, ideal for hospitals and nursing homes > Group and global control for increased response time |
| Brand | Apollo Fire Detectors |
|---|---|
| Manufacturer Part No. | 58000-005APO |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Apollo XP95, Apollo Discovery, Apollo CoreProtocol |
| Colour | Red |
| Warranty | 10 Years |
FAQ’s for Apollo Discovery Open-Area Sounder Visual Indicator (Red) (58000-005APO)
Product Specification for Apollo Discovery Open-Area Sounder Visual Indicator (Red) (58000-005APO)
| Manufacturer: | Apollo |
| Product Code: | 58000-005 |
| Type: | Outdoor |
| Operating Voltage: | 17-28V DC |
| Switch on Surge: | <1.2mA for 1s |
| Quiescent: | 450µA |
| Sounder Operating: | Variable |
| Sounder Output at 90°± 3dB(A) Max: | 100dB(A) |
| IP Rating: | IP65 |
