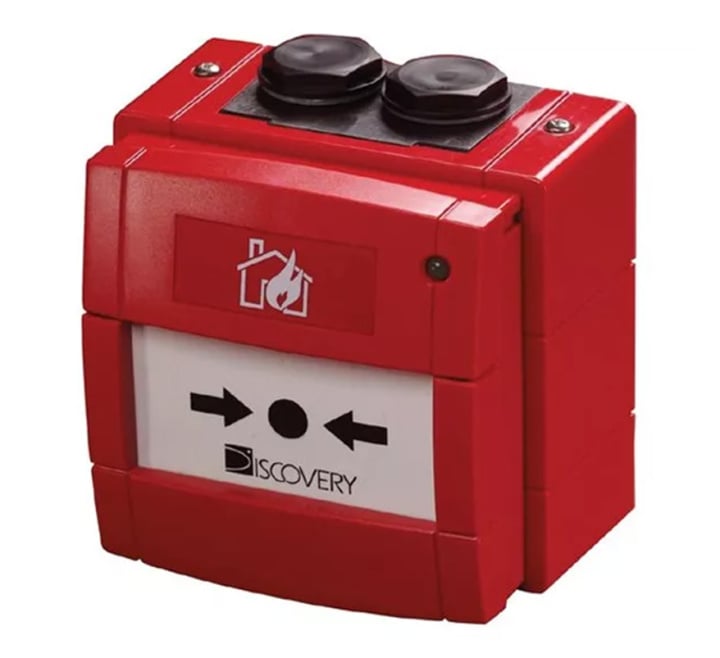

Apollo Discovery Marine Waterproof Manual Call Point with Isolator [SIL2] (58100-976MAR)
SKU
58100-976MAR
£280.13
£233.44
Apollo Discovery Marine Waterproof Manual Call Point with Isolator [SIL2] (58100-976MAR)
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for Apollo Discovery Marine Waterproof Manual Call Point with Isolator [SIL2] (58100-976MAR)
The Apollo Discovery Marine Waterproof Manual Call Points (MCP) have been designed for use in marine and offshore environments. The Manual Call Point is used to manually initiate an alarm signal on the fire detection system.
Key Features of the 58100-976MAR |
|---|
|
> Suitable for weatherproof applications
> EN 54-11 & EN 54-17 Certified > Reports an alarm in under 0.2 seconds > 'Plug and Play' terminal connections for faster wiring > Continuity link for wiring test before commissioning > XP95 & Discovery compatible > Resettable operating element > Easy access, front reset mechanism > Ergonomic reset key and keyring hole > Front-facing accessible addressing for commissioning > Flashing polling LED option > 170º viewable LED indicator |
| Brand | Apollo Fire Detectors |
|---|---|
| Manufacturer Part No. | 58100-976MAR |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Apollo XP95, Apollo Discovery, Apollo CoreProtocol |
| Warranty | 10 Years |
Write Your Own Review
FAQ’s for Apollo Discovery Marine Waterproof Manual Call Point with Isolator [SIL2] (58100-976MAR)
No questions yet. Be the first to ask the question!
Product Specification for Apollo Discovery Marine Waterproof Manual Call Point with Isolator [SIL2] (58100-976MAR)
| Product code: | 58100-976MAR |
| Description: | Apollo Discovery Marine Waterproof Manual Call Point with Isolator [SIL2] |
| Dimensions: | W:89mm x L:27mm x D:93mm |
| Key type: | KAC Manual Call Point test & reset key |
| Detection principle: | Operation of a switch |
| Colour: | White |
| Materials: | Housing: Polycarbonate, ABS |
| Approvals: | ESC, DNV.GL, CCS, MED |
| Quiescent current: | 100μA (tested @ 24V dc) |
| Terminal functions: | -L2 Line in & out negative -L1 in Loop (isolated) negative |
| Polarity: | L1 & L2 are polarity sensitive |
| Protocol voltage: | 5 to 9V peak to peak |
| Power-up surge current: | 1mA |
| Max. power-up time: | 1 second |
| Analogue value nominal: | 16 |
| Alarm level analogue value: | 64 |
| Humidity: | 0 - 95% (no condensation or icing) |
| Operating temperature: | -20 to 60°C |
| IP Rating: | IP67 |
| Warranty: | 3 year |
