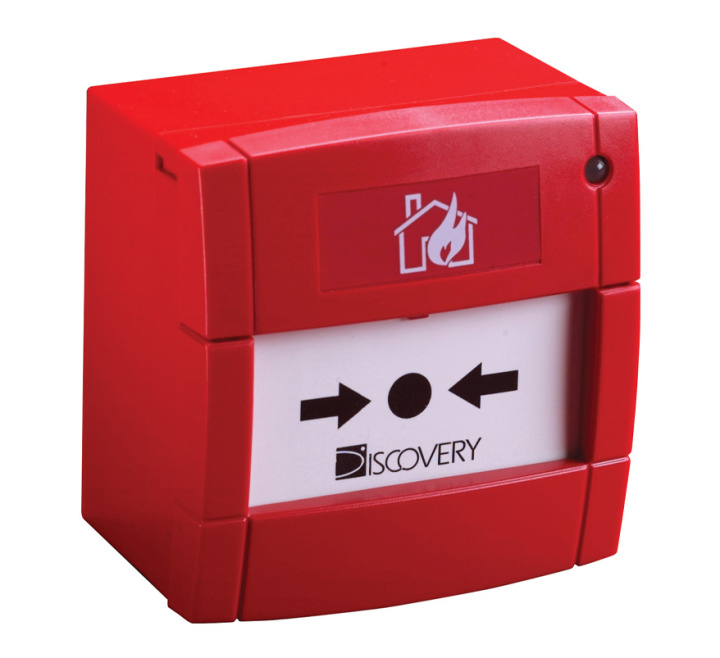

Apollo Discovery Marine Manual Call Point - Isolating [SIL2] (58100-971MAR)
SKU
58100-971MAR
£121.15
£100.96
Apollo Discovery Marine Manual Call Point - Isolating [SIL2] (58100-971MAR)
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for Apollo Discovery Marine Manual Call Point - Isolating [SIL2] (58100-971MAR)
The Apollo 58100-971MAR Discovery Marine Manual Call Points (MCP) have been designed for use in marine and offshore environments. This version includes a short circuit isolator and is SIL level 2 certified.
Key Features of the 58100-971MAR |
|---|
|
> Includes a short circuit isolator
> SIL level 2 certified > EN 54-11 Certified > Reports an alarm in under 0.2 seconds > 'Plug and Play' terminal connections for faster wiring > Continuity link for wiring test before commissioning > Suitable for semi-flush or surface mounting > XP95 & Discovery compatible > Resettable operating element > Easy access, front reset mechanism > Ergonomic reset key and keyring hole > Front facing accessible addressing for commissioning > E-Z fit first fix terminals for installation (indoor only) > Flashing polling LED option > 170º viewable LED indicator |
| Brand | Apollo Fire Detectors |
|---|---|
| Manufacturer Part No. | 58100-971MAR |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Apollo XP95, Apollo Discovery, Apollo CoreProtocol |
| Warranty | 10 Years |
Write Your Own Review
FAQ’s for Apollo Discovery Marine Manual Call Point - Isolating [SIL2] (58100-971MAR)
No questions yet. Be the first to ask the question!
Product Specification for Apollo Discovery Marine Manual Call Point - Isolating [SIL2] (58100-971MAR)
| Product code: | 58100-971MAR |
| Description: | Apollo Discovery Marine Manual Call Point - Isolating [SIL2] |
| Dimensions: | W:89mm x L:93mm x 60mm |
| Applications: | Bedrooms, Dusty environments, Marine |
| Key type: | KAC Manual Call Point test & reset key |
| Detection principle: | Operation of a switch |
| Colour: | White |
| Materials: | Housing: Polycarbonate |
| Approvals: | ESC, DNV.GL, CCS, MED |
| Quiescent current: | 100μA (tested @ 24V dc) |
| Polarity: | L1 & L2 are polarity sensitive |
| Protocol voltage: | 5 to 9V peak to peak |
| Power-up surge current: | 1mA |
| Max. power-up time: | 1 second |
| Analogue value nominal: | 16 |
| Alarm level analogue value: | 64 |
| Humidity: | 0 - 95% (no condensation or icing) |
| Operating temperature: | -20 to 60°C |
| IP Rating: | IP24D |
| Warranty: | 10 year |
