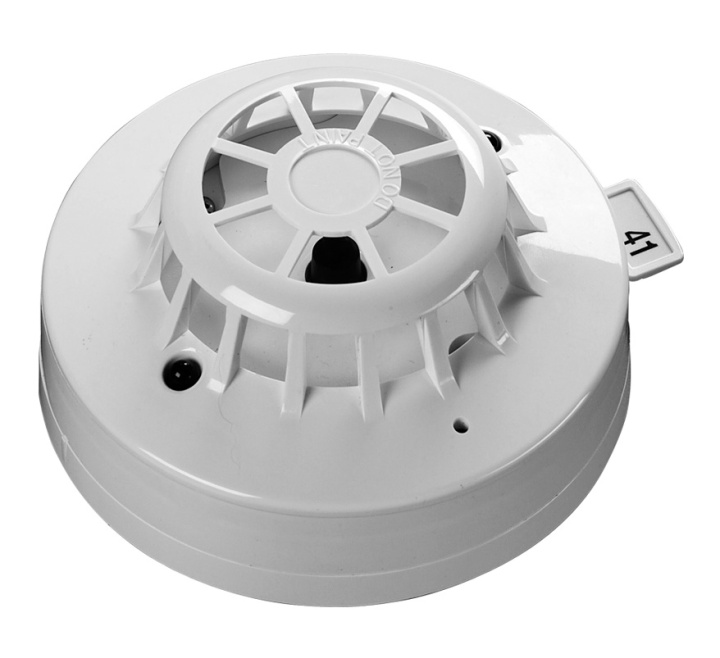

Apollo Discovery Marine Heat Detector [SIL2] (58000-400MAR)
SKU
58000-400MAR
£83.59
£69.66
Apollo Discovery Marine Heat Detector [SIL2] (58000-400MAR)
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for Apollo Discovery Marine Heat Detector [SIL2] (58000-400MAR)
The Apollo 58000-400MAR Discovery Marine Heat Detector uses a single thermistor to sense the air temperature at the detector position. The thermistor is connected in a resistor network, which produces a voltage output dependent on temperature. The design of the resistor network, together with the processing algorithm in the micro-controller, gives an approximately linear characteristic from 10ºC to 80ºC. This linearised signal is further processed, depending upon the response mode selected, and converted to an analogue output.
Key Features of the 58000-400MAR |
|---|
|
> Reliable fire detection in areas with a very wide temperature range from -40°C to +70°C
> Five operating modes suitable for a range of application temperatures > Ideal for environments that are dirty or smoky under normal circumstances > Drift compensation to ensure constant sensitivity > Well suited to galleys and smoking rooms > Unaffected by wind or atmospheric pressure > Remote test feature > Certified to a broad range of marine approvals and EAC approved > Base not included (sold separately) |
| Brand | Apollo Fire Detectors |
|---|---|
| Manufacturer Part No. | 58000-400MAR |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Apollo XP95, Apollo Discovery, Apollo CoreProtocol |
| Sensor Type | Thermistor |
| Detectable Medium | Heat |
| Warranty | 10 Years |
Write Your Own Review
FAQ’s for Apollo Discovery Marine Heat Detector [SIL2] (58000-400MAR)
No questions yet. Be the first to ask the question!
Product Specification for Apollo Discovery Marine Heat Detector [SIL2] (58000-400MAR)
| Product code: | 58000-400MAR |
| Description: | Apollo Discovery Marine Heat Detector [SIL2] |
| Dimensions: | Diameter:100mm x D:42mm |
| Applications: | Dusty environments, Large vessels, Marine, Restaurants |
| Fire type: | Fast burning, flaming fires |
| Heat classification: | A1R, A2R, A2S, CR, CS |
| Alarm level analogue value: | 55 |
| Materials: | Housing: Polycarbonate Terminals: Nickel plated stainless steel |
| Detection principle: | Temperature sensitive resistance |
| Standards / Approvals: | EN54-5 / BV, DNV.GL, CCS, LR, ESC, MED |
| Colour: | White |
| Sensor configuration: | Exposed heat sensing thermistor |
| Max. power-up time: | 10 seconds |
| Quiescent current: | 400μA (tested @ 24V dc) |
| Polarity: | L1 & L2 are polarity sensitive |
| Protocol voltage: | 5 to 9V peak to peak |
| Power-up surge current: | 1mA |
| Humidity: | 0 - 95% (no condensation or icing) |
| Storage temperature: | -40 to 80°C |
| IP Rating: | IP54 |
| Warranty: | 10 year |
| Weight: | 105g |
