Apollo Discovery Manual Call Point without Isolator (Red) (58100-910APO)
SKU
58100-910APO
£54.78 £45.65

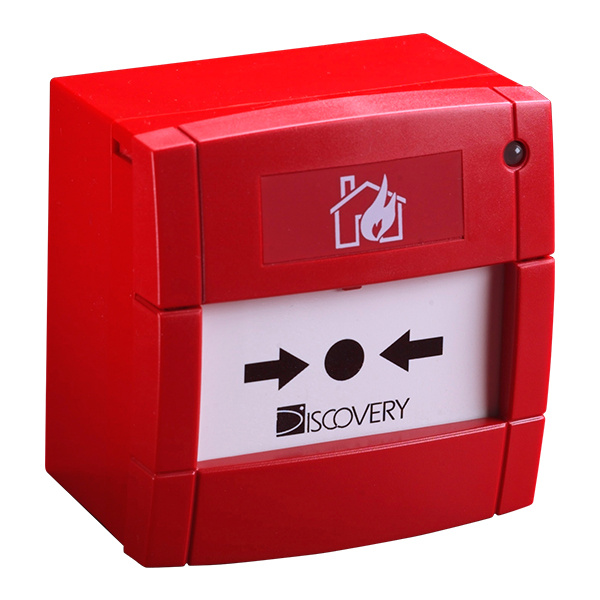

Apollo Discovery Manual Call Point without Isolator (Red) - 58100-910APO
- Buy 10 for £54.34 £45.28 each and save 1%
A seven-segment DIL switch enables addressing of each call point at commissioning stage. When operated, the manual call point interrupts the polling cycle for a fast response. Bi-coloured LEDs indicate isolate and normal conditions.
Operation
The Apollo Discovery Manual Call Point has been designed to operate on a loop of intelligent fire detection devices. An alarm is initiated by pressing the resettable element. The manual call point signals to the control and indicating equipment using an interrupt feature within the Apollo digital communication protocol.
An alarm status is indicated by a yellow and black bar in the lower section of the resettable element and a red LED. The manual call point can be easily reset from the front using the supplied reset key. It is available in two versions, with and without isolator.
The manual call point is intended for indoor applications.
Device Addressing
The address of each call point is set at the commissioning stage by means of an a seven segment DIL switch. The address switch is accessable without removing the call point from the mounting surface.
Communication
Discovery, (XP95 & CoreProtocol compatible).
Additional Information
A red alarm LED is provided on the manual call point. This LED is controlled independently of the manual call point, by the fire control panel. Once activated, the manual call point can be reset by inserting the reset key into front facing LED, turning clockwise until a positive click and reset occurs. An additional pack of 10 reset keys can be purchased, Part Number 44251-176.
The isolated version of the manual call point incorporates a short circuit isolator which will ensure its operation in the event of a short circuit fault on the loop. Isolator operation is indicated by a yellow LED. For further details of the isolator refer to datasheet PP2090, available on request.
This manual call point helps reduce installation time as all the initial installation cabling is wired to a terminal block which fits neatly in the back of the call point.
Options
To provide additional protection against accidental operation a transparent cover, Part Numbers 44251-189 (single pack) or 44251-175 (pack of 10) can be fitted and is available.
Watch the Video
| Key Features |
|---|
| > Flashing LED option to indicate polling (Discovery systems only) > ‘Plug and Play’ terminal connections for fast wiring > Continuity link for wiring test before commissioning > Reports an alarm in under 0.2 seconds > Resettable element |
| Manufacturer | Apollo Fire Detectors |
|---|---|
| MPN | 58100-910APO |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Apollo XP95, Apollo Discovery, Apollo CoreProtocol |
| Colour | Red |
| Warranty | 10 Years |
Write Your Own Review
Sort By:
No questions yet. Be the first to ask the question!
| Call Point Type: | Deformable element |
| Call point principle: | Operation of a switch |
| Alarm indicator: | Red Light Emitting Diode (LED) |
| Fault indicator: | Amber/Yellow Light Emitting Diode (LED) |
| Supply wiring: | Two-wire supply, polarity sensitive |
| Loop connections: | Terminal Block L1 -ve/L2 +ve |
| Operating voltage: | 17-28V DC |
| Communication protocol | Apollo Discovery 5-9V peak to peak |
| Quiescent current: | 100µA |
| Power-up surge current: | 1mA |
| Maximum power-up time: | 1 Second |
| Alarm current, LED illuminated: | 4mA |
| Normal analogue value: | 16 |
| Alarm state value: | 64 |
| Temperature range: | - 20°C to + 60°C |
| Humidity: | 0 to 95% relative humidity (no condensation) |
| Compliance Standard: | EN54-11:2001; EN54-17:2005 (isolated version) |
| IP Rating: | 24D IP67 (weatherproof) |
| Dimensions: | 89mm x 93mm x 26.5mm (manual call point) |
| Weight: | Flush Mounted - 110g, Surface Mounted 0 160g |
| Materials: | Housing: Red self-coloured polycarbonate/ABS |
